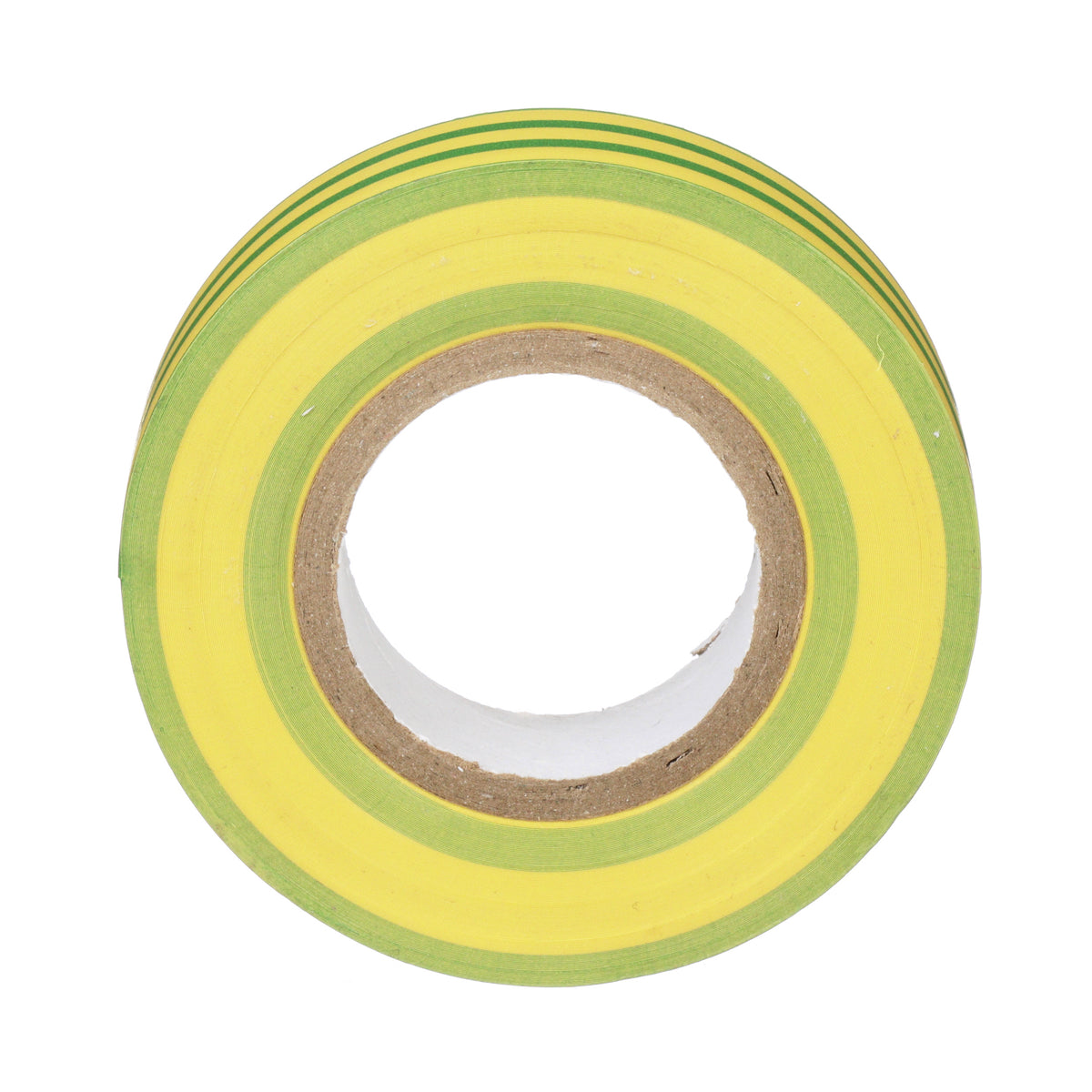

Panduit ST15-075-66GRYL | PVC Electrical Tape | UPC - 61305673267

StrongHold ST15-075-66GRYL General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .005”in size. It is yellow with green stripes in color and comes individually cellophane wrapped. Suitable as primary insulation when used for splicing up 600 Volts or 80?C (176?F).

---

Panduit Panduit ST15-075-66GRYL | PVC Electrical Tape | UPC - 61305673267 Key Specs

Sub Brand	StrongHold
Product Type	PVC Electrical Tape
Color	Yellow/Green
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.005
Overall Thickness (mm)	0.13
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	66
Overall Length (m)	20.12
Tensile Strength (N/cm)	23.54
Tensile Strength (kg/mm)	0.24
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.75
Adhesion to Steel (oz/in)	16
Adhesion to Backing (N/cm)	1.75
Adhesion to Backing (oz/in)	16
Flammability Rating	GB/T15903-1995 Level 0
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
