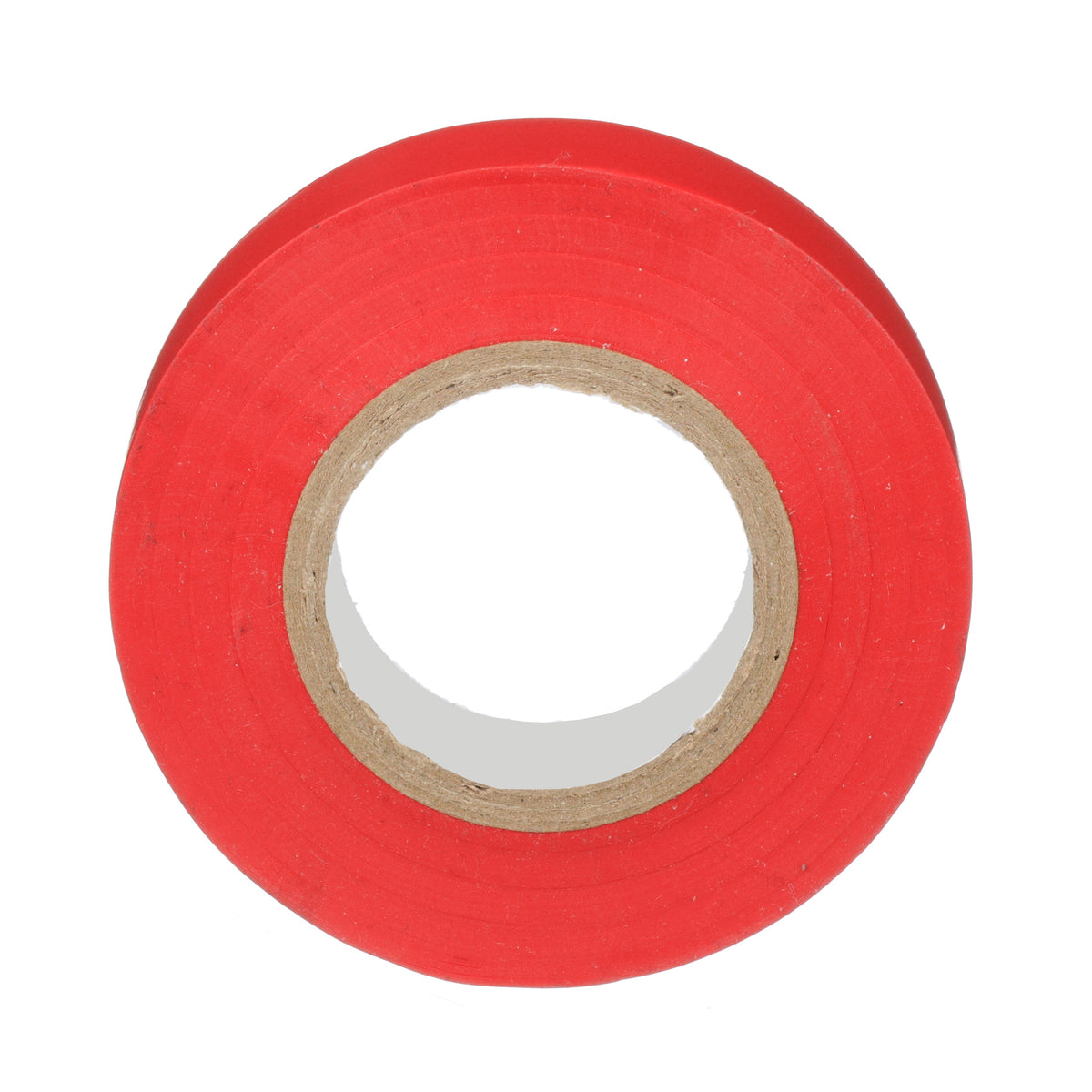

Panduit ST17-075-66RD | PVC Electrical Tape | UPC - 61305673261

StrongHold ST17-075-66RD General Purpose PVC Electrical Tape has non-corrosive and pressure-sensitive adhesive, which eliminates the need for heat, moisture or other catalysts during application. Its high elongation provides excellent conformability properties and it is .75" x 66' x .007” in size. It is red in color and comes individually cellophane wrapped. Suitable as primary insulation when used for splicing up 600 Volts or 80?C (176?F).

---

Panduit Panduit ST17-075-66RD | PVC Electrical Tape | UPC - 61305673261 Key Specs

Sub Brand	StrongHold
Product Type	PVC Electrical Tape
Color	Red
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19.05
Overall Length (ft.)	66
Overall Length (m)	20.12
Tensile Strength (N/cm)	24.72
Tensile Strength (kg/mm)	0.252
Elongation at Break (%)	200
Adhesion to Steel (N/cm)	1.97
Adhesion to Steel (oz/in)	18
Adhesion to Backing (N/cm)	1.97
Adhesion to Backing (oz/in)	18
Flammability Rating	UL 510 Flame Retardant
Maximum Operating Temperature (°C)	80
Maximum Operating Temperature (°F)	176
