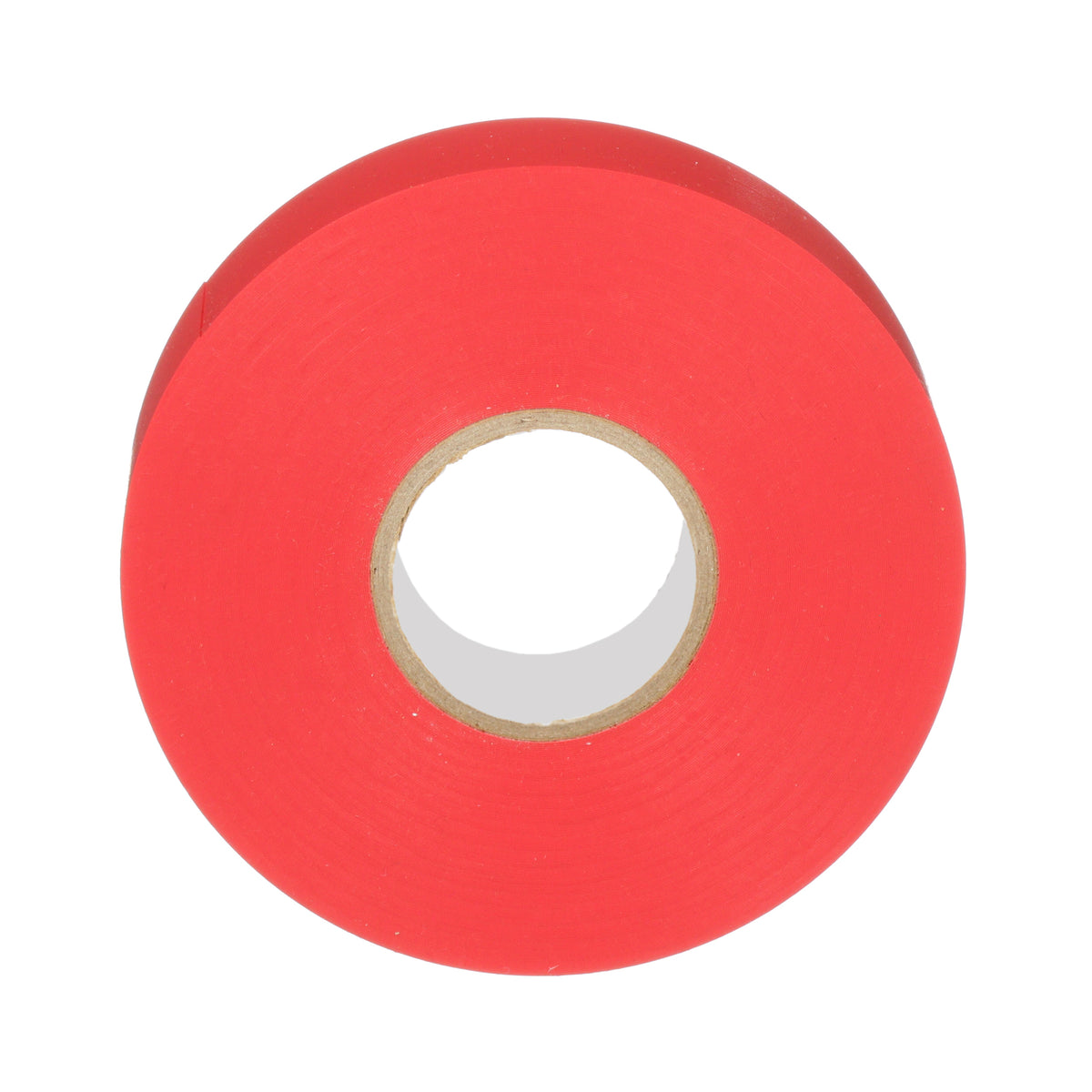

Panduit ST35-075-66RD | PVC Electrical Tape | UPC - 61305658033

StrongHold ST35-075-66RD Professional Grade PVC Electrical Tape is a pressure sensitive vinyl electrical tape that applies easily and provides a high level of performance over a range of temperatures. It has excellent elasticity and insulating properties and it is .75" x 66' x .007" in size. It is red in color and comes in an individual plastic puck. Suitable as primary insulation when used for splicing up 600 Volts or 80?C (176?F) and can be used as protective jacketing.

---

Panduit Panduit ST35-075-66RD | PVC Electrical Tape | UPC - 61305658033 Key Specs

Sub Brand	StrongHold
Product Type	PVC Electrical Tape
Color	Red
Material	Polyvinyl Chloride (PVC)
Overall Thickness (In.)	0.007
Overall Thickness (mm)	0.18
Overall Width (In.)	0.75
Overall Width (mm)	19
Overall Length (ft.)	66
Overall Length (m)	20
Tensile at Break (N/cm)	30
Tensile at Break (kg/mm)	0.31
Elongation at Break (%)	260
Adhesion to Steel (N/cm)	2.2
Adhesion to Steel (oz/in)	20.1
Adhesion to Backing (N/cm)	2.2
Adhesion to Backing (oz/in)	20.1
Flammability Rating	UL 510 Flame Retardant
Flagging (mm)	0
Maximum Operating Temperature (°C)	105
