Panduit STP28X1MBU | Cat 6A 28 AWG Shielded Patch Cord, 1m, Blue
Description
Description

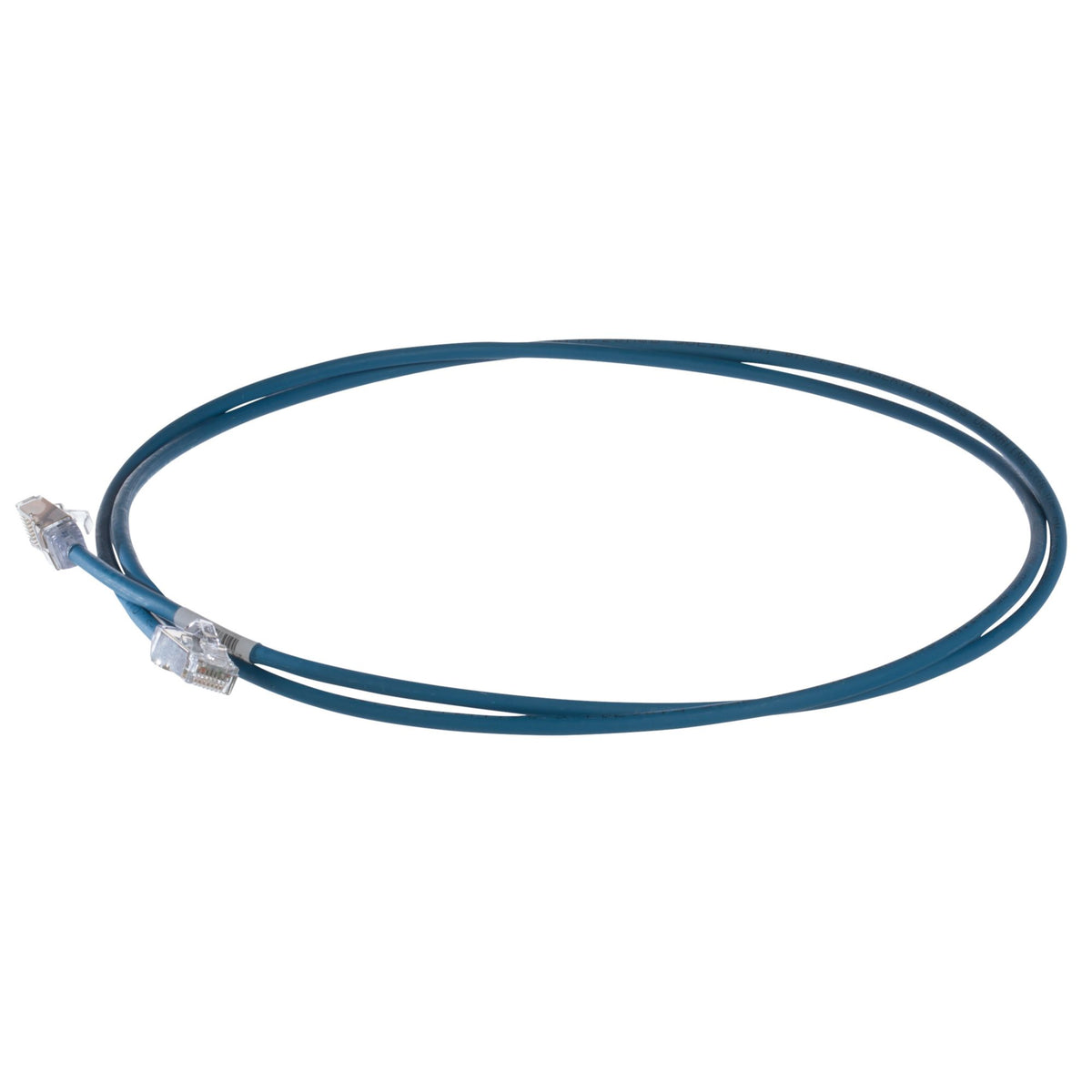

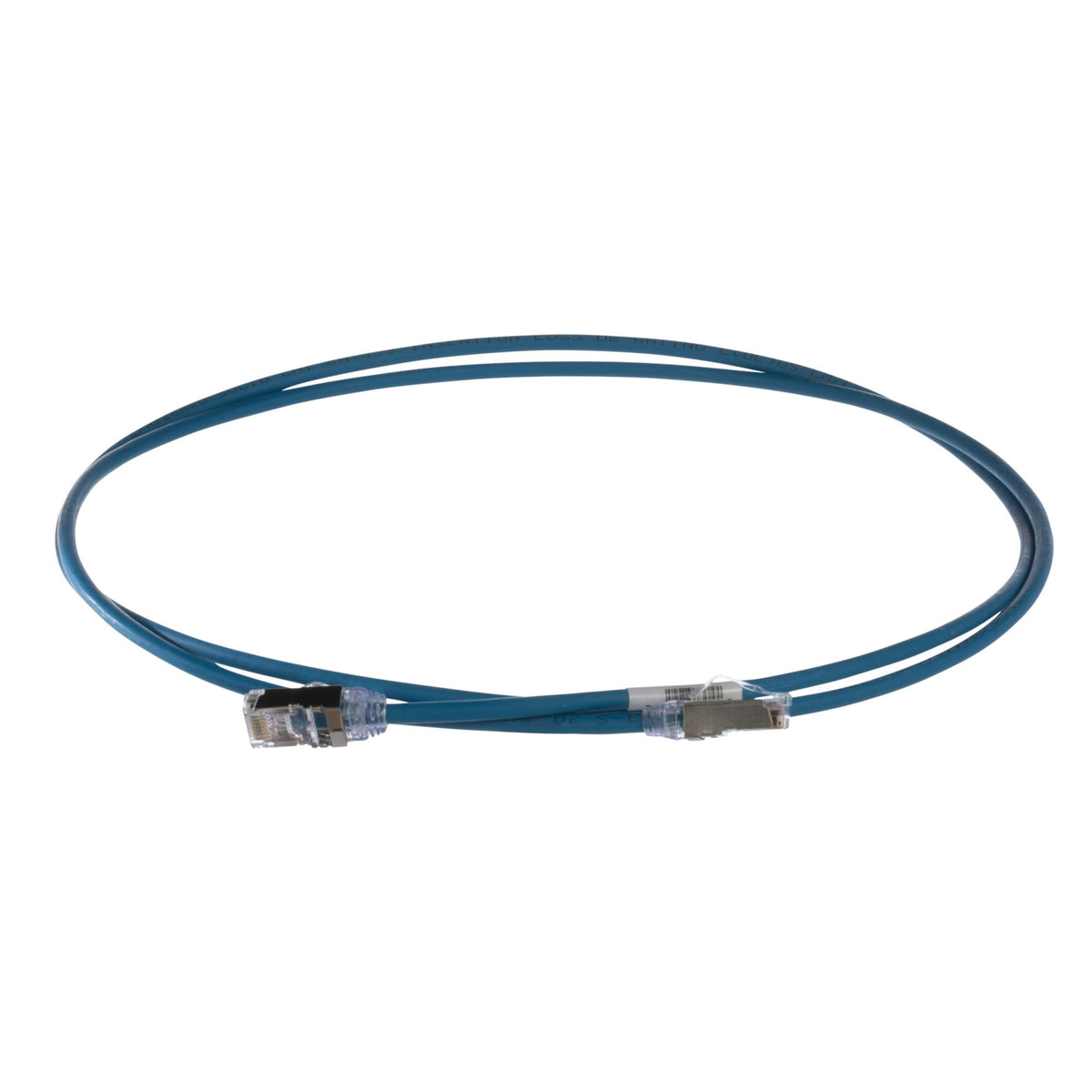

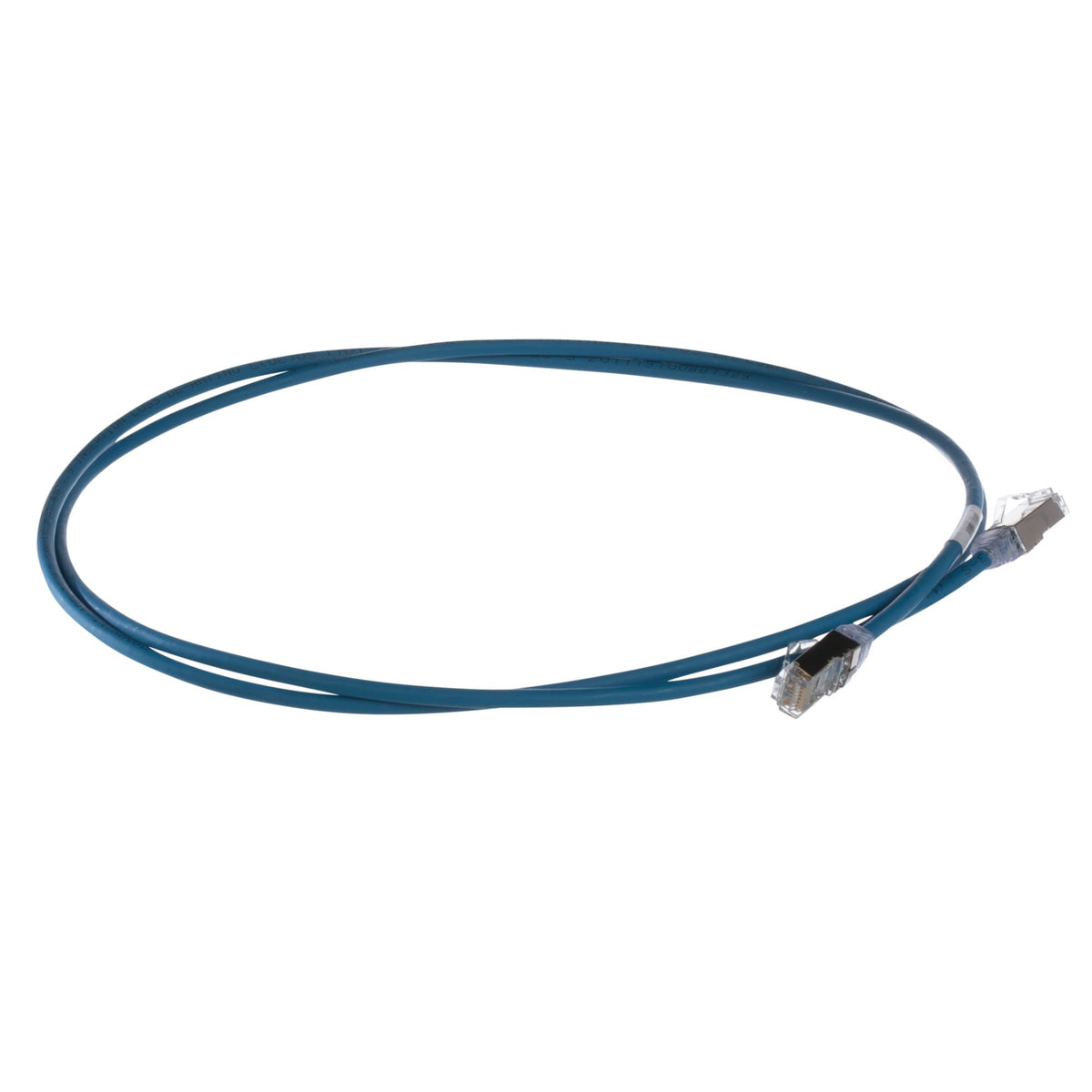

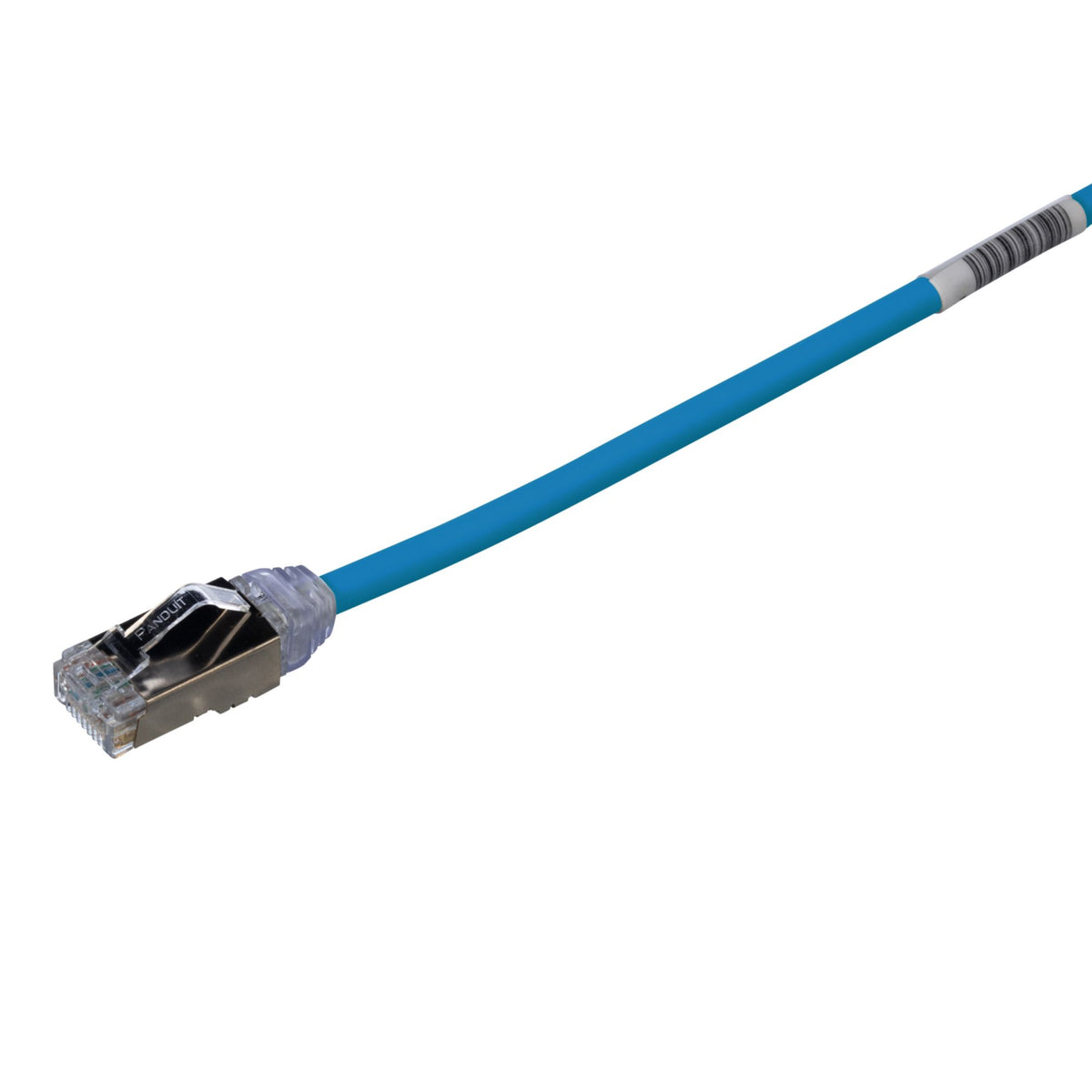

The TX6A-28 10Gig Cat 6A STP Patch Cord is a 1-Meter, 0.185-inch (4.7mm) diameter, Blue cord constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit STP28X1MBU Cbl Assy Mod 28-4pr Solidcat6a Cm/lszh T568b Blue1 Meter
Specifications
Specifications
Panduit - STP28X1MBU - Product Categories
- Copper Systems
- Patch Cords
Panduit - STP28X1MBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STP28X1MBU |
| Item Description | Cat 6A 28 AWG Shielded Patch Cord, 1m, Blue |
| Application | (1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing |
| Product Type | Shielded Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 1 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 75 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
| Color | Blue |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE/PoE+/PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
Panduit - STP28X1MBU - Package Information
| UPC | 07498300262 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0240 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2403 |
Panduit - STP28X1MBU - Videos
| Video 1 | Click to View |
|---|
