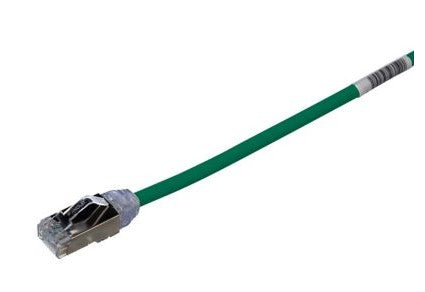

Panduit STP28X2.5MGR | Cat 6A 28 AWG Shielded Patch Cord, 2.5 m, Green
Description
Description
The TX6A-28™ 10Gig Cat 6A STP Patch Cord is a 2.5-Meter, 0.185-inch (4.7mm) diameter, Green cord constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - STP28X2.5MGR - Specifications
| Product Type | Patch Cord |
|---|---|
| Application | (1) 10GBASE-T Ethernet (2) Data center I/O Consolidation (3) Data center server virtualization (4) Backbone aggregation (5) Parallel processing and high speed computing. |
| Conductor Gauge (AWG) | 28 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 2.5 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Boot Color | Clear |
| Color | Green |
| Plug Type | 8 Position |
