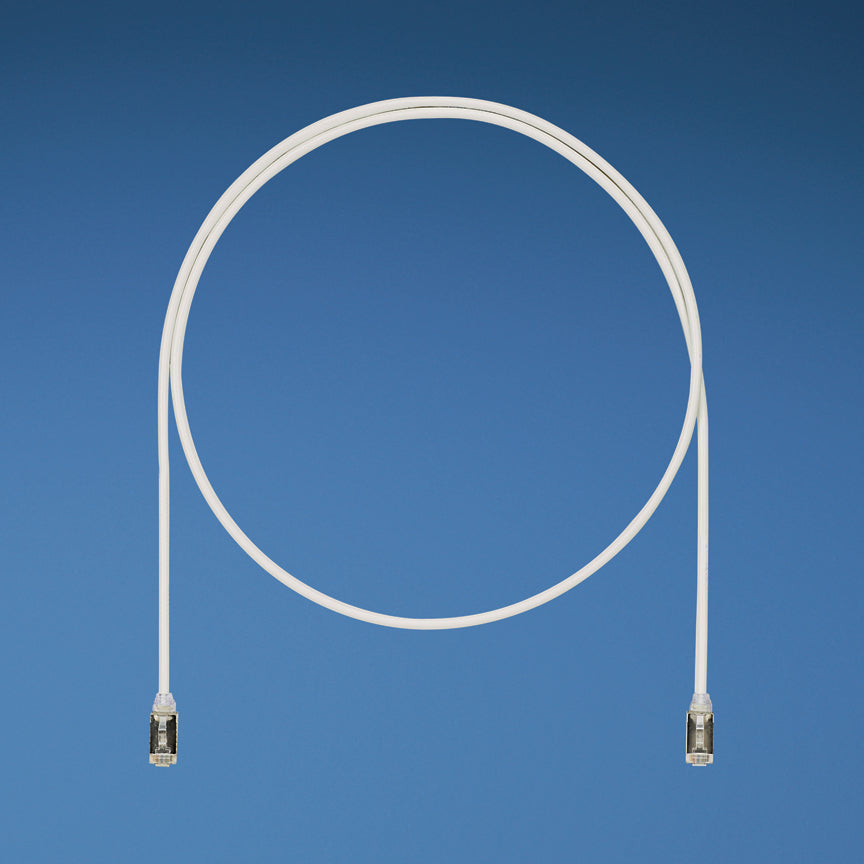

Panduit STP28X4MIG | Patch Cord | UPC - 07498301626
Regular price
$41.77
Unit price
Brand: Panduit
|
SKU:
MM04M-PDTC6ASTP28-Z9
Regular price
$41.77
Unit price
Description
Description
Cat 6A/class EA, F/UTP, small diameter patch cords are constructed of 28 AWG, shielded, twisted pair, solid copper (dual-rated CM/LSZH) cable with high performance RJ45 modular plugs. patch cords are offered in multiple lengths and colors for design flexibility.
Panduit PanNet TX6A-28 Patch Cord, Class EA Small Diameter, Series: STP28X, Category: Cat 6A, 28 AWG Conductor, F/UTP Shielded Solid Copper Conductor, RJ45 Modular Plug Connector, 4 m Cord Length, International Gray, 14 to 167 deg F
Features + Benefits
- 100% performance tested for wire map, next and return loss
- Centered de-embedded plug
- Patented tangle free latch
- Smaller diameter, flexible cable design
- Robust construction
- 0.19 in OD
Panduit STP28X4MIG | Patch Cord | UPC - 07498301626 Key Specs
| Application | (1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 28 |
| Conductor Gauge (kcmil) | 0.2 |
| Sub Brand | PanNet |
| Performance Level | Category 6A |
| Conductor Type | Solid |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 4 |
| Nominal Cable Outside Diameter (mm) | 4.7 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 75 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
Panduit STP28X4MIG | Patch Cord | UPC - 07498301626 Data Sheets
| Technical References | Patch Cord Wiring Guide: TR103 | Download and View |
| Part Drawings | Category 6A Shielded 28AWG Copper Patch Cords | Download and View |
| Selection Guides | 28 AWG Selection Guide - Category 6A, 6, & 5e (NA, LA): COSG10--WW-ENG | Download and View |
Panduit STP28X4MIG | Patch Cord | UPC - 07498301626 Environmental Information
| Panduit's RoHS Statement | Download and View |
