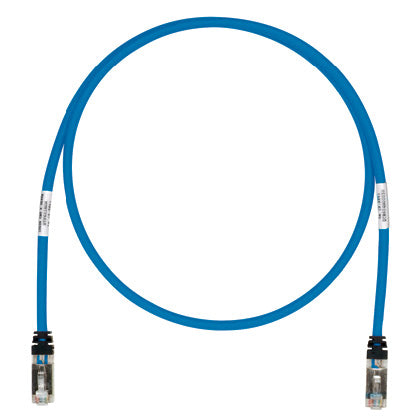

Panduit STP6X10BU | Shielded Patch Cord
Description
Description
Category 6A, 10 Gb/s STP patch cord with TX6(TM) PLUS Modular Plugs on each end.
Category 6A/class EA, S/FTP patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with an enhanced performance shielded modular plug at each end. Patch cord cable shall be offered in multiple colored S/FTP cable for design flexibility with a black strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX6A 10Gig Patch Cord, S/FTP Shielded, Series: STP6X, Category: Cat 6a, 26 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 10 ft Cord Length, Blue Jacket, 14 to 140 deg F
Panduit - STP6X10BU - Features
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Specifications
Specifications
Panduit - STP6X10BU - Specifications
| Category | Category 6A |
|---|---|
| Color | Blue |
| Lengths | 10 Ft. | 3.05 M |
| Connector Type | Rj45 To Rj45 |
| Shielded | S/Ftp - Screened/Foiled Twisted Pair |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Product Type | Shielded Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.3 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 10 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
| UPC | 07498301185 |
