Panduit STP6X15BL | Pan-Net Patch Cord
Regular price
$44.38
Unit price
Brand: Panduit
|
SKU:
MM15-PDT10GSTP-02
Regular price
$44.38
Unit price
Description
Description
Panduit STP6X15BL | Pan-Net Patch Cord

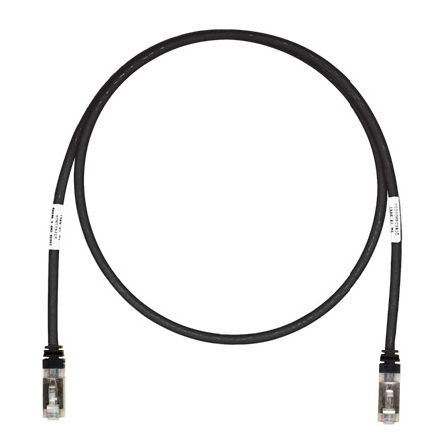

Panduit STP6X15BL Copper Patch Cord, Cat 6A, Black S/FTP Cable, 15ft
This TX6A 10Gig Cat 6A STP Patch Cord is a 15-Foot, Black cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - STP6X15BL - Product Categories
- Copper Systems
- Patch Cords
Panduit - STP6X15BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STP6X15BL |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 15 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568A/T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
| Color | Black |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards ; Meets ANSI/TIA-1096-A requirements (formerly FCC Part 68); Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863 approved; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; CE Compliant; RoHS compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
Panduit - STP6X15BL - Package Information
| UPC | 07498301164 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0431 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.4307 |
