Panduit STP6X3GR | Patch Cord | UPC - 07498301256
Description
Description
Category 6A/Class EA, S/FTP patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with an enhanced performance shielded modular plug at each end. Patch cord cable shall be offered in multiple colored S/FTP cable for design flexibility with a black strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.

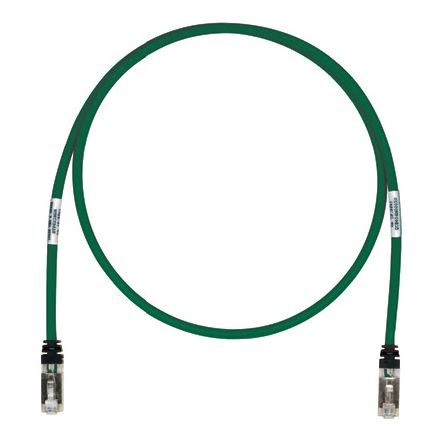

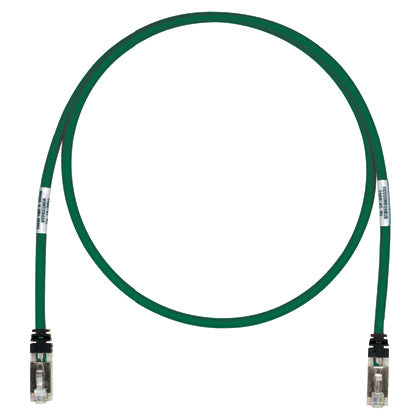

Panduit PanNet TX6A 10Gig Patch Cord, S/FTP, Category: Cat 6A, 26 AWG Conductor, Copper Conductor, Modular Plug Connector, 3 ft Cord, Green
Features + Benefits
- 100% performance tested
- Robust construction
- Provides identification of performance level, length and quality control number for future traceability
- Patented tangle free latch on modular plugs
- Meets individual length requirements for greater system flexibility
Panduit STP6X3GR | Patch Cord | UPC - 07498301256 Key Specs
| Application | (1) Stacking switched and switch-to-switch links (2) Aggregation of Gigabit Ethernet channels (3) Streaming video (4) Scientific modeling (5) Storage area networks (6) Real-time intensive financial transactions (7) Animation (8) Medical imaging |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 3 |
| Sub Brand | PanNet |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
Panduit STP6X3GR | Patch Cord | UPC - 07498301256 Data Sheets
| Certifications | Third Party Certifications/Reports - ETL Report of Test Certificate (STP6X) | Download and View |
| Selection Guides | TX6A 10Gig Shielded Copper Cabling System Selection Guide: COSG06--WW-ENG | Download and View |
| Technology Briefs | Decision to Install Cat 6A: COTB04--WW-ENG | Download and View |
Panduit STP6X3GR | Patch Cord | UPC - 07498301256 Environmental Information
| Panduit's RoHS Statement | Download and View |
