Panduit STP6X4MGR | Pan-Net Shielded Patch Cord
Regular price
$41.77
Unit price
Brand: Panduit
|
SKU:
374317
Regular price
$41.77
Unit price
Description
Description

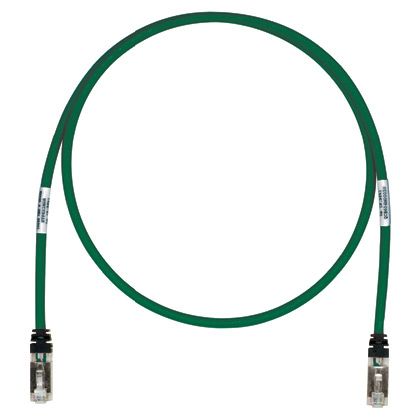

Panduit STP6X4MGR | Pan-Net Shielded Patch Cord
This TX6A 10Gig Cat 6A STP Patch Cord is a 4-Meter, Green cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Specifications
Specifications
Panduit - STP6X4MGR - Product Categories
- Copper Systems
- Patch Cords
Panduit - STP6X4MGR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STP6X4MGR |
| Item Description | Pan-Net Shielded Patch Cord |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Product Type | Shielded Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.3 |
| Sub Brand | Pan-Net |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 4 |
| Nominal Cable Outside Diameter (mm) | 6.1 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
| Color | Green |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | Meets IEC 60603-7 |
| RapidID Enabled | Yes |
Panduit - STP6X4MGR - Package Information
| UPC | 07498370993 |
|---|---|
| Std. Pkg. Qty. | 1 |
| Std. Pkg. Volume (cf) | 0.0469 |
| Std. Ctn. Qty. | 10 |
| Std. Ctn. Volume (cf) | 0.4694 |
