Panduit STP6X9IG | Pan-Net Patch Cord
Regular price
$36.55
Unit price
Brand: Panduit
|
SKU:
MM09-PDT10GSTP-09
Regular price
$36.55
Unit price
Description
Description

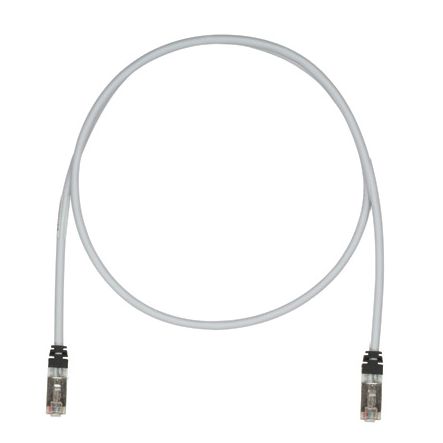

Panduit STP6X9IG | Pan-Net Patch Cord
This TX6A 10Gig Cat 6A STP Patch Cord is a 9-Foot, Int'l Grey cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit STP6X9IG Copper Patch Cord, Cat 6A, Intl Gray S/FTP Cable, 9ft
Specifications
Specifications
Panduit - STP6X9IG - Product Categories
- Copper Systems
- Patch Cords
Panduit - STP6X9IG - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STP6X9IG |
| Item Description | Pan-Net Patch Cord |
| Application | (1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.3 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (ft.) | 9 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.24 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
| Color | International Gray |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | ANSI/TIA-568-C.2, ISO 11801 Class EA, IEEE 802.3af, 802.3at, 802.3bt type 3 and type 4, UL 1863 |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
Panduit - STP6X9IG - Package Information
| UPC | 07498301132 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0347 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.3474 |
