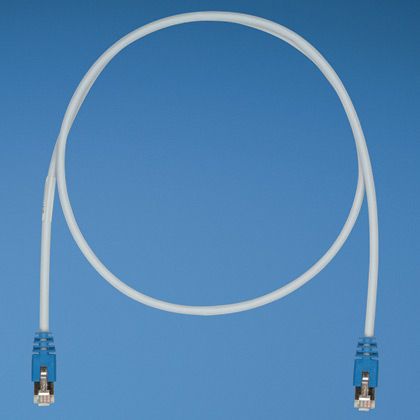

Panduit STPCH1.5MBBU | Patch Cord
Description
Description
Category 5e, shielded patch cord with Pan-Plug Shielded Modular Plugs on each end, Blue, 1.5 meters.
Category 5e/class D, F/UTP shielded patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with a shielded high performance modular plug at each end. Patch cord cable shall be available in gray in multiple lengths and strain relief boots on the modular plugs shall be available in multiple colors for additional design flexibility. Patch cords shall be used in all work area outlets and modular patch panels. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, F/UTP Shielded, Series: STPCH, Category: Cat 5e, 26 AWG Conductor, Stranded Copper Conductor, RJ45 Modular Plug Connector, 4.92 ft Cord Length, International Gray Jacket, 14 to 140 deg F
Panduit - STPCH1.5MBBU - Features
- Designed to provide easy and economical solutions for routing any low voltage cable along smooth and clean perimeter walls, baseboards or ceilings
- 100% performance tested for wire map, NEXT and return loss
- Centered de-embedded plug
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Specifications
Specifications
Panduit - STPCH1.5MBBU - Specifications
| Category | Category 5E |
|---|---|
| Color | Grey |
| Lengths | 1.5 M | 4.92 Ft. |
| Connector Type | Rj45 To Rj45 |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Application | 1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) 2) 155 Mb/s ATM, 622 Mb/s ATM 3) Token ring 4/16 4) Voice/data systems 5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Sub Brand | PanNet |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Connector 1 Type | RJ45 8 |
| Connector 2 Type | RJ45 8 |
| Overall Length (m) | 1.5 |
| Nominal Cable Outside Diameter (mm) | 5.1 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Blue |
| Color | Blue |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ISO 11801 Class D and ANSI/TIA-568.2-D Category 5e standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE, PoE+, PoE++ |
| Plug Type | 8 Position |
| UPC | 07498371834 |
Panduit - STPCH1.5MBBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.1000 |
