Brand: Panduit
|
SKU:
MM03M-PDTC5E-02
Panduit STPCH3MBBL | Cat 5e 26 AWG Shielded Patch Cord, 3 m, IG
Regular price
$28.46
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit STPCH3MBBL | Cat 5e 26 AWG Shielded Patch Cord, 3 m, IG
Regular price
$28.46
Unit price
Brand: Panduit
|
SKU:
MM03M-PDTC5E-02
Regular price
$28.46
Unit price
Shipping calculated at checkout.
Description
Description

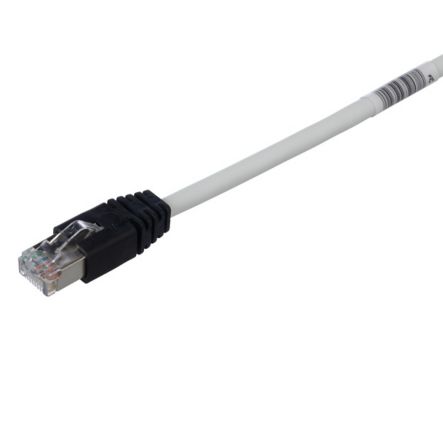

Panduit STPCH3MBBL | Cat 5e 26 AWG Shielded Patch Cord, 3 m, IG
The TX5e Cat 5e Shielded Patch Cord is constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable with Pan-Plug modular plugs on each end. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The plugs have a black boot. The patch cord is 3 meters in length and international gray.
Panduit STPCH3MBBL - PATCHCORD CAT5E - MOD PATCHCORD 4PR STRANDED
Specifications
Specifications
Panduit - STPCH3MBBL - Product Categories
- Copper Systems
- Patch Cords
Panduit - STPCH3MBBL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STPCH3MBBL |
| Item Description | Cat 5e 26 AWG Shielded Patch Cord, 3 m, IG |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.25 |
| Sub Brand | Pan-Net |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 5.2 |
| Wiring Scheme | T568A |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Black |
| Color | International Gray |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds all ANSI/TIA-568.2-D Category 5e and ISO 11801 Class D standards for all frequencies from 1 to 100 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes. |
| IEC Variant | 60603-7 |
| PoE Compatibility | IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt Type 3 and 4 (PoE++) |
| Plug Type | 8 Position |
Panduit - STPCH3MBBL - Package Information
| UPC | 07498371818 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0269 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2694 |
