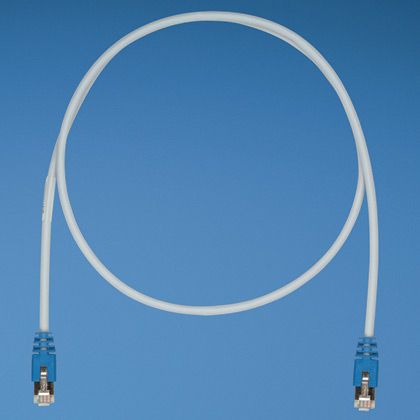

Panduit STPCH3MBBU | Cat 5e 26 AWG Shielded Patch Cord, 3 m, IG
Description
Description
Protect your high-speed network connections with our durable, tangle-free Cat 5e STP patch cord, available in various lengths and colors for easy identification and quick setup.
Category 5e, shielded patch cord with Pan-Plug Shielded Modular Plugs on each end, Blue, 3 meters.
Category 5E/Class D, F/UTP shielded patch cords shall be constructed of 26 AWG shielded twisted pair stranded copper cable with a shielded high performance modular plug at each end. Patch cord cable shall be available in gray in multiple lengths and strain relief boots on the modular plugs shall be available in multiple colors for additional design flexibility. Patch cords shall be used in all work area outlets and modular patch panels. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit PanNet TX5e Patch Cord, F/UTP, Category: Cat 5e, 26 AWG Conductor, Copper Conductor, Modular Plug Connector, 9.84 ft Cord, International Gray
Panduit - STPCH3MBBU - Features
- Color specific keys with positive and negative keying features
- 100% performance tested
- Centered de-embedded plug
- Integral pair manager
- Patented tangle free latch
- Slender strain relief boot
- Robust construction
Specifications
Specifications
Panduit - STPCH3MBBU - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STPCH3MBBU |
| Category | Category 5E |
| Color | Grey |
| Lengths | 3 M | 9.84 Ft. |
| Connector Type | Rj45 To Rj45 |
| Type | Patch Cords |
| UNSPSC Code | 43223303 |
| Product Type | Patch Cord |
| Application | (1) Ethernet 10BASE-T, 100BASE-T (Fast Ethernet), 1000BASE-T (Gigabit Ethernet) (2) 155 Mb/s ATM, 622 Mb/s ATM (3) Token ring 4/16 (4) Voice/data systems (5) Voice over Internet Protocol (VoIP) |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.25 |
| Sub Brand | Pan-Net |
| Performance Level | Category 5e |
| Conductor Type | Stranded |
| Cable Construction | F/UTP |
| Patch Cord Type | Shielded |
| Plug Housing Material | Polycarbonate |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (m) | 3 |
| Nominal Cable Outside Diameter (mm) | 5.2 |
| Wiring Scheme | RJ45/T568A |
| Maximum Operating Temperature (°C) | 60 |
| Minimum Operating Temperature (°C) | -10 |
| Maximum Storage Temperature (°C) | 70 |
| Minimum Storage Temperature (°C) | -40 |
| Boot Color | Blue |
| UPC | 07498371837 |
Panduit - STPCH3MBBU - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8544.42.1000 |
