Panduit STPK6X7BL | Pan-Net Patch Cord
Regular price
$36.55
Unit price
Brand: Panduit
|
SKU:
10153325
Regular price
$36.55
Unit price
Description
Description

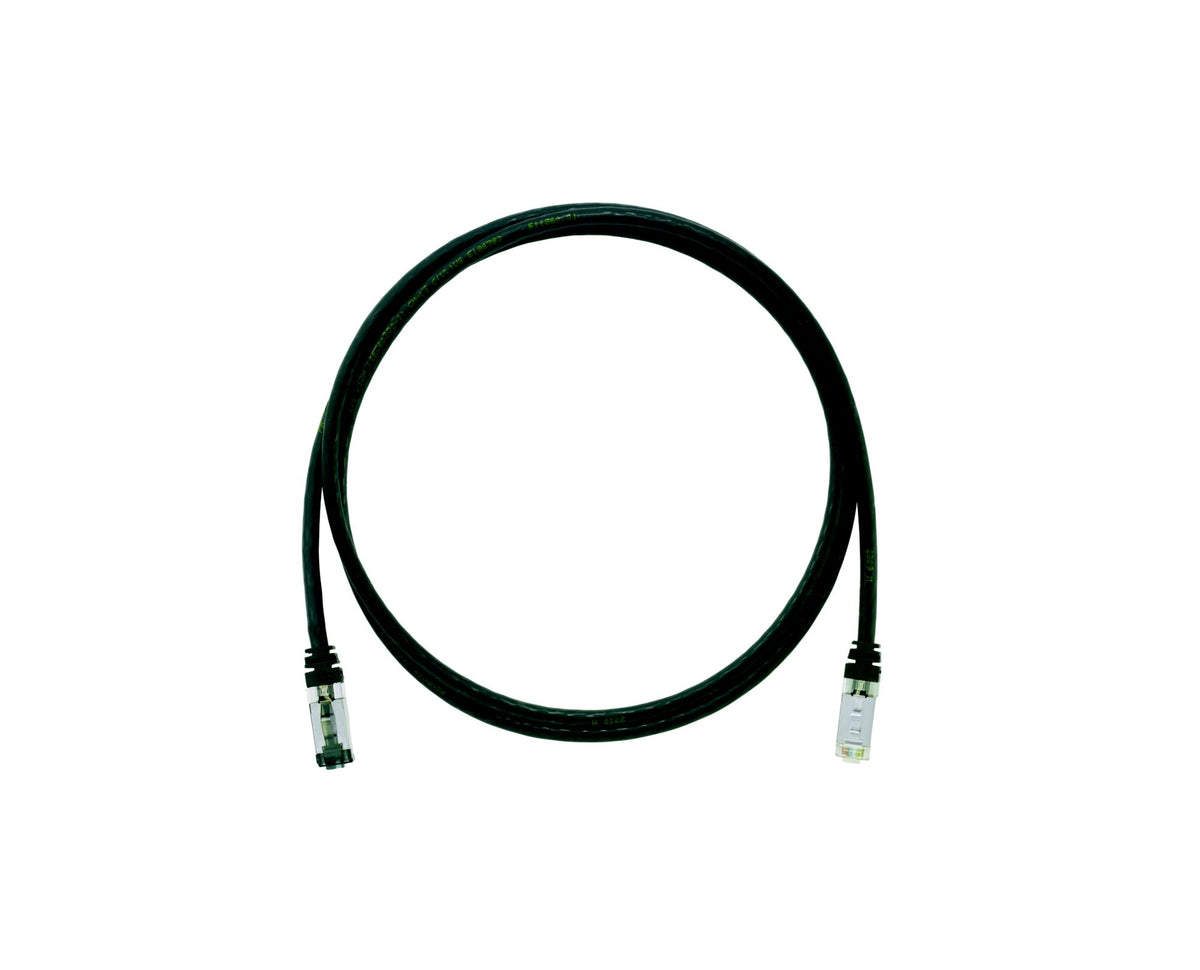

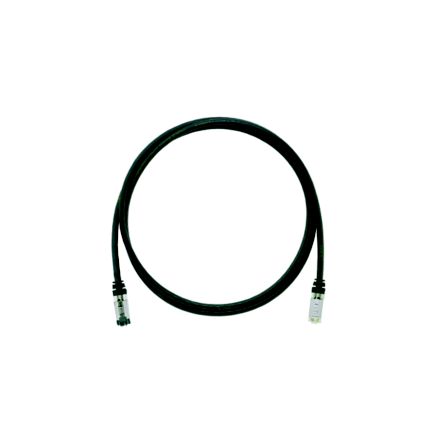

Panduit STPK6X7BL | Pan-Net Patch Cord
The TX6A 10Gig Keyed Cat 6A STP Patch Cord is a 7-Foot, Black cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable. It's equipped with a TX6A 10Gig Keyed Modular Plug on one end and a Non-Keyed Modular Plug on the other. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.
Panduit STPK6X7BL Panduit Stpk6x7bl Patch Cord M
Specifications
Specifications
Panduit - STPK6X7BL - Product Categories
- Copper Systems
- Patch Cords
Panduit - STPK6X7BL - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | STPK6X7BL |
| Item Description | Pan-Net Patch Cord |
| Application | Allow the design of secure, modular, end-to-end connectivity for communication and computing elements from the data center to the workstation |
| Product Type | Patch Cord |
| Conductor Gauge (AWG) | 26 |
| Conductor Gauge (kcmil) | 0.2 |
| Performance Level | Category 6A |
| Conductor Type | Stranded |
| Cable Construction | S/FTP |
| Patch Cord Type | Shielded |
| Jacket Material | LSZH Material |
| Connector 1 Type | Modular Plug |
| Connector 2 Type | Modular Plug |
| Overall Length (ft.) | 7 |
| Sub Brand | Pan-Net |
| Nominal Cable Outside Diameter (In.) | 0.23 |
| Wiring Scheme | T568B |
| Maximum Operating Temperature (°F) | 140 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°F) | 158 |
| Minimum Storage Temperature (°F) | -40 |
| Boot Color | Black |
| Color | Black |
| Flammability Rating | Dual Rated (CM/LSZH) |
| Standards Met | Exceeds requirements of ANSI/TIA-568-C.2 Category 6A, IEEE 802.3an-2006, and ISO 11801 Class EA channel standards; RoHS Compliant |
| IEC Variant | 60603-7 |
| PoE Compatibility | PoE+ |
| Plug Type | 8 Position |
| RapidID Enabled | Yes |
Panduit - STPK6X7BL - Package Information
| UPC | 07498311860 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0269 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.2694 |
