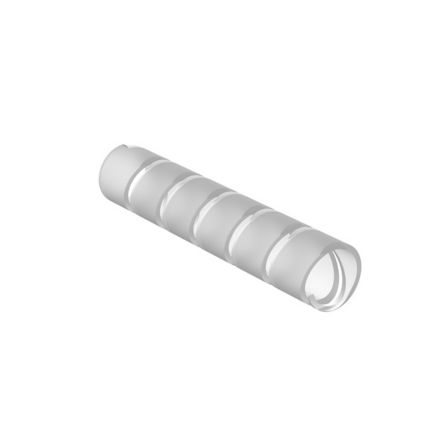

Panduit T100F-C | T100F-C Spiral Wrap, Natural, Pe, 0.875" Min Dia., Pk1
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T100F-C | T100F-C Spiral Wrap, Natural, Pe, 0.875" Min...
Description
Description
The T100F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 1" (25.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.875" to 6" (22.2 mm to 152.4 mm). Color Natural.
Panduit - T100F-C - Features
- Panduit Spiral Wrap, Reusable Reverse Cut, 1 in OD Dia, 100 ft Length, 0.07 in Thickness, 6 in Maximum Bundle Dia, 0.87 in Minimum Bundle Dia, 1-1/8 in Pitch, -40 to 122 deg F, Polyethylene, Natural
- Harness multiple cables into a single manageable bundle
- Allows breakouts of single/multiple cables
- Multiple colors allow for easy identification of cable bundles
- Installation tool supplied in each package
Specifications
Specifications
Panduit - T100F-C - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - T100F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T100F-C |
| Item Description | T100F-C Spiral Wrap, Natural, Pe, 0.875" Min Dia., Pk1 |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion Resistance |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152.4 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.875 |
| Minimum Bundle Diameter (mm) | 22.2 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 1 |
| Outer Diameter (mm) | 25.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.07 |
| Wall Thickness (mm) | 1.78 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable. |
| MPN: | T100F-C |
| Color: | Natural |
| Diameter: | 1 in OD |
| Length: | 100 ft |
| Material: | Polyethylene |
| Maximum Bundle Diameter: | 6 in |
| Minimum Bundle Diameter: | 0.87 in |
| Pitch: | 1-1/8 in |
| Temperature Rating: | -40 to 122 deg F |
| Thickness: | 0.07 in |
| Type: | Reusable Reverse Cut |
Panduit - T100F-C - Package Information
| UPC | 07498370545 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4780 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - T100F-C - Videos
| Video 1 | Click to View |
|---|
