Panduit T12F-C | Spiral Wrap
Regular price
$65.28
Unit price
Brand: Panduit
|
SKU:
137877
Regular price
$65.28
Unit price
Description
Description

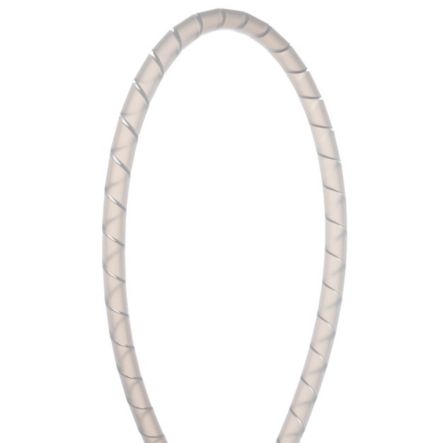

Panduit T12F-C | Spiral Wrap
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
Spiral wrap, offers abrasion protection for wires, cables, hoses and tubing, .12" (3.2mm) x 100’, polyethylene, natural.
Panduit Spiral Wrap, Reusable Reverse Cut, 0.12 in OD Dia, 100 ft Length, 0.03 in Thickness, 1/2 in Maximum Bundle Dia, 0.06 in Minimum Bundle Dia, 0.218 in Pitch, -40 to 122 deg F, Polyethylene, Natural
Panduit - T12F-C - Features
- Harness multiple cables into a single manageable bundle
- Allows breakouts of single/multiple cables

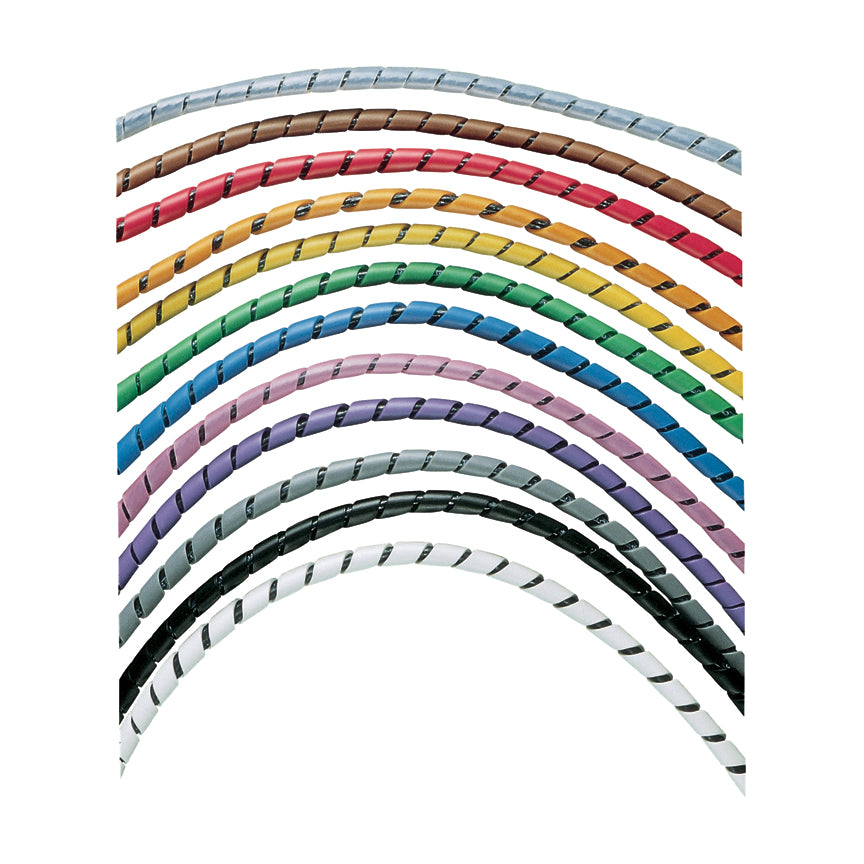

- Multiple colors allow for easy identification of cable bundles
- Installation tool supplied in each package
- Largest variety of colors materials and sizes in the industry
- Available in seven different materials and twelve different colors
- Colors conform to Communications Wiring Standards
- Flexible, neat, fast
- Allows breakouts of single/multiple wires and rerouting of replacement wires
- Harness multiple cables into a single manageable bundle
- A protection for wires cables hoses and tubing
- Color code wire bundles
- Reusable
- Tool supplied in each package
Specifications
Specifications
Panduit - T12F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T12F-C |
| Decimal | .120 Inch |
| Dual | No |
| Heat Shrink | No Is Not Shrink Tubing |
| Mil Spec | No |
| Material/Type | Pe-Polyethylene |
| Military Color Code | Natural |
| Size By Inch Fractions | 1/8 Inch |
| Sleeving | No |
| Spiral Wrap | Yes |
| Ul | Yes |
| Zipper | No |
| UNSPSC Code | 39131604 |
| Product Type | Spiral Wrap |
| Application | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.6 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.12 |
| Outer Diameter (mm) | 3.2 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized E141152 |
| Wall Thickness (In.) | 0.03 |
| Wall Thickness (mm) | 0.8 |
| UPC | 07498370600 |
Panduit - T12F-C - Videos
| Panduit T12F-C Video 1 | Click to View |
|---|
