Brand: Panduit
|
SKU:
PAN-T25F-C

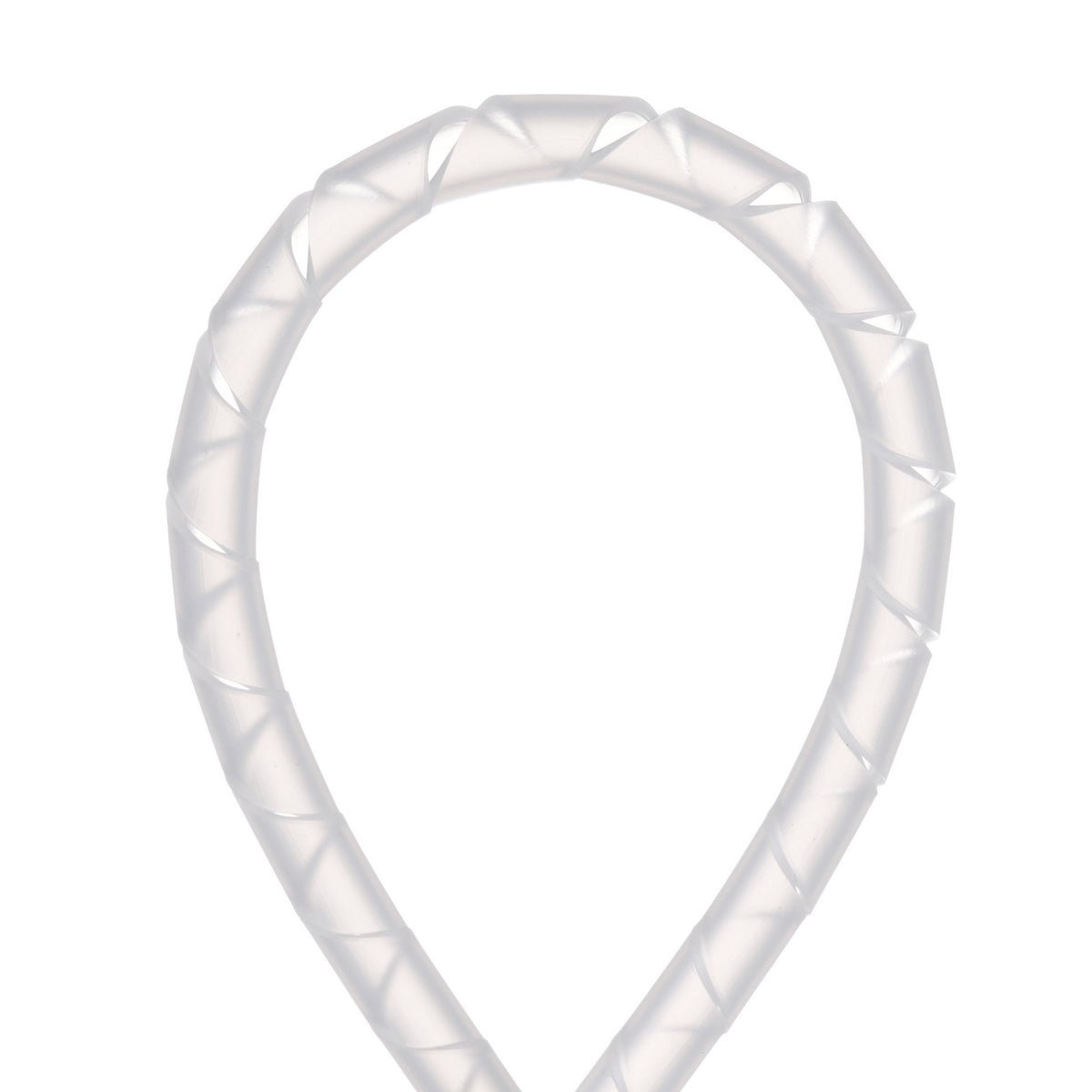

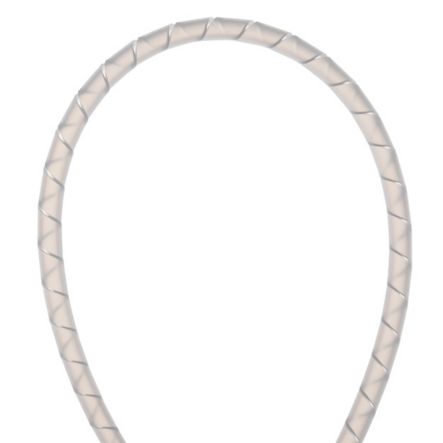

Panduit T25F-C | Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1
Regular price
$79.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T25F-C | Spiral Wrap, Natural, PE, 0.1875" Min Dia., 1...
Regular price
$79.64
Unit price
Description
Description
Panduit T25F-C | Spiral Wrap, Natural, PE, 0.1875" Min Dia., 100' Roll, PK1
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
Panduit Spiral Wrap, Reusable Reverse Cut, 1/4 in OD Dia, 100 ft Length, 0.04 in Thickness, 2 in Maximum Bundle Dia, 3/16 in Minimum Bundle Dia, 3/8 in Pitch, -40 to 122 deg F, Polyethylene, Natural
Panduit - T25F-C - Features

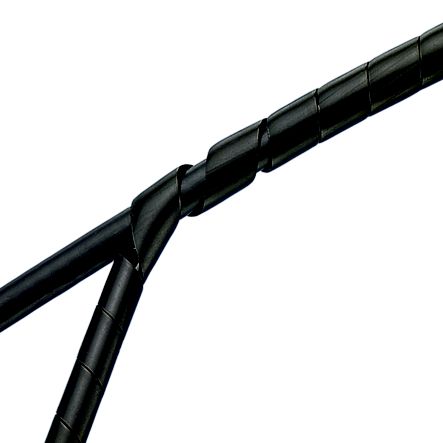

- Allows breakouts of single/multiple cables
- Harness multiple cable into a single manageable bundle
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
Specifications
Specifications
Panduit - T25F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T25F-C |
| Product Type | Spiral Wrap |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Bundle Diameter (In.) | 0.1875 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.04 |
| UPC | 07498370554 |
Panduit - T25F-C - Videos
| Panduit T25F-C Video 1 | Click to View |
|---|
