Panduit T25FR-C20Y | Spiral Wrap, Black, Fr Pe, 0.1875" Min Di...
Description
Description

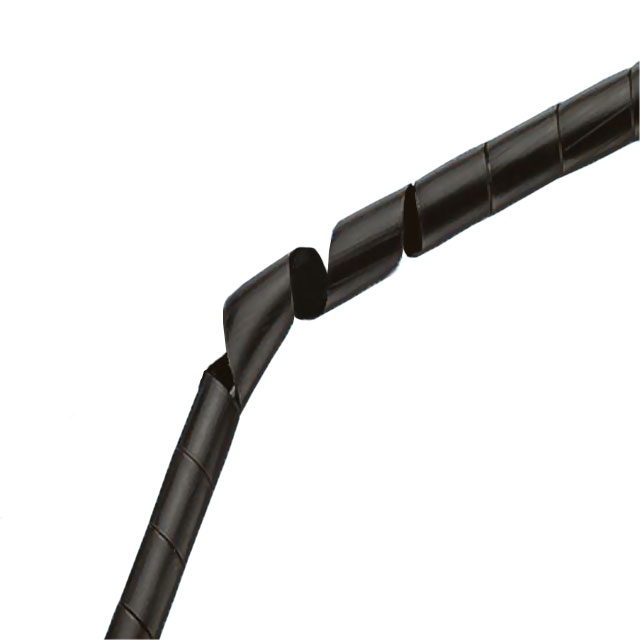

The T25FR-C20Y Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.25" (6.4 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.1875" to 2" (4.8 mm to 50.8 mm). Color Black.
Panduit - T25FR-C20Y - Features
- Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable.
Specifications
Specifications
Panduit - T25FR-C20Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T25FR-C20Y |
| Item Description | Spiral Wrap, Black, Fr Pe, 0.1875" Min Dia., Pk1 |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94V-0 |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant, Flame-Retardant |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.1875 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94V-0 |
| Wall Thickness (In.) | 0.04 |
| Wall Thickness (mm) | 1.02 |
