Panduit T25N-M | Spiral Wrap
Regular price
$1,620.39
Unit price
Brand: Panduit
|
SKU:
PAN-T25N-M
Regular price
$1,620.39
Unit price
Description
Description

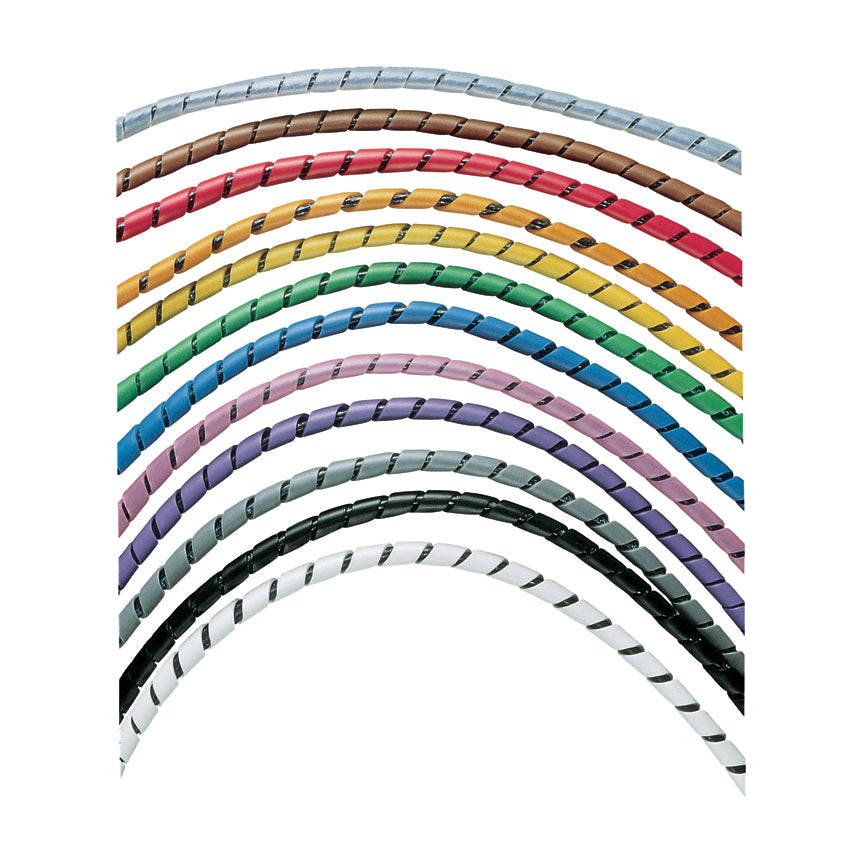

Panduit T25N-M | Spiral Wrap
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
Spiral Wrap, offers abrasion protection for wires, cables, hoses and tubing, .25" (6.3mm) x 1000’, nylon 6.6, natural.
Panduit Spiral Wrap, 1/4 in OD Dia, 1000 ft Length, 0.023 in Thickness, 2 in Maximum Bundle Dia, 3/16 in Minimum Bundle Dia, -40 to 149 deg F, Nylon 6.6, Natural
Panduit - T25N-M - Features
- Harness multiple cable into a single manageable bundle
- Allows breakouts of single/multiple cable
- Reverse cut
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
- Reusable
Specifications
Specifications
Panduit - T25N-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T25N-M |
| UNSPSC Code | 39121400 |
| Product Type | Spiral Wrap |
| Application | (1) Harness Multiple Cables Into a Single Manageable Bundle(2) Allows Breakouts of Single/Multiple Cables(3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Flammability Rating | UL94-HB |
| Material | Nylon 6.6 |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 2 |
| Maximum Bundle Diameter (mm) | 50.8 |
| Minimum Bundle Diameter (In.) | 0.18 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.25 |
| Outer Diameter (mm) | 6.4 |
| Overall Length (ft.) | 1000 |
| Overall Length (m) | 304.8 |
| Standards Met | UL Recognized E141152 |
| Wall Thickness (In.) | 0.02 |
| Wall Thickness (mm) | 0.6 |
| UPC | 07498370563 |
Panduit - T25N-M - Videos
| Panduit T25N-M Video 1 | Click to View |
|---|
