Panduit T38FR-C20Y | T38Fr-C20Y Spiral Wrap, Black, Fr Pe, 0.3125&q...
Description
Description

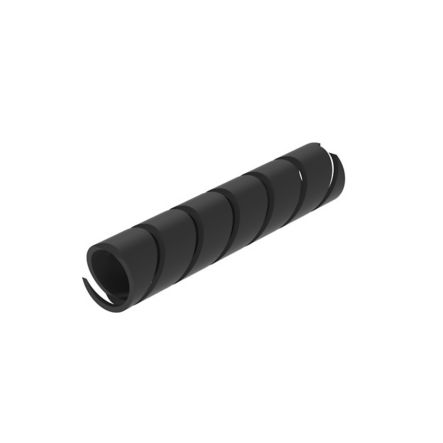

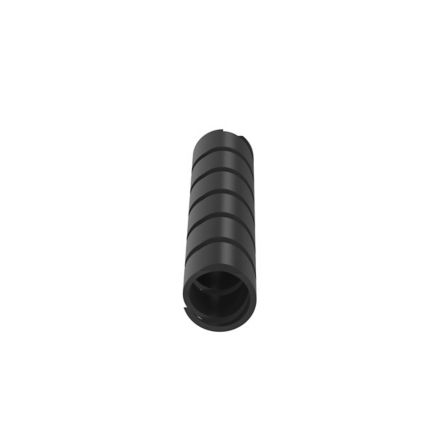

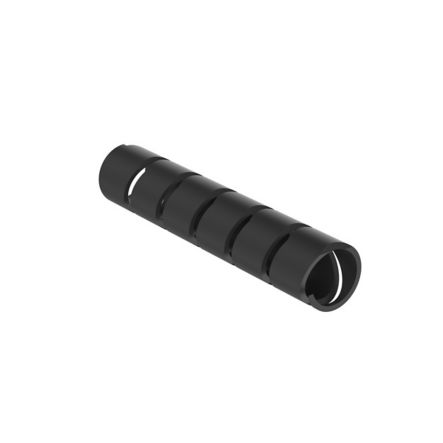

The T38FR-C20Y Flame Retardant Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection for use with irregular shapes. Rated for use up to 122°F (50°C). 0.38" (9.5 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.3125" to 3" (7.9 mm to 76.2 mm). Color Black.
Panduit - T38FR-C20Y - Features
- Largest variety of colors materials and sizes in the industry
- Available in seven different materials and twelve different colors
- Colors conform to Communications Wiring Standards
- Flexible, neat, fast
- Allows breakouts of single/multiple wires and rerouting of replacement wires
- Harness multiple cables into a single manageable bundle
- A protection for wires cables hoses and tubing
- Color code wire bundles
- Reusable
- Tool supplied in each package
Specifications
Specifications
Panduit - T38FR-C20Y - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - T38FR-C20Y - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T38FR-C20Y |
| Item Description | T38Fr-C20Y Spiral Wrap, Black, Fr Pe, 0.3125" Min Dia., Pk1 |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor |
| Flammability Rating | UL94V-0 |
| Material | Flame Retardant Polyethylene |
| Resistance Properties | Abrasion Resistance; Flame Retardant |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.3125 |
| Minimum Bundle Diameter (mm) | 7.9 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.5 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94V-0 |
| Wall Thickness (In.) | 0.055 |
| Wall Thickness (mm) | 1.4 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable. |
Panduit - T38FR-C20Y - Package Information
| UPC | 07498310785 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.8359 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
