Panduit T38N-TL | Spiral Wrap
Description
Description
Panduit Spiral Wrap, Reusable Reverse Cut, 3/8 in OD Dia, 250 ft Length, 0.03 in Thickness, 3 in Maximum Bundle Dia, 5/16 in Minimum Bundle Dia, 0.437 in Pitch, -40 to 149 deg F, Nylon 6.6, Natural
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.

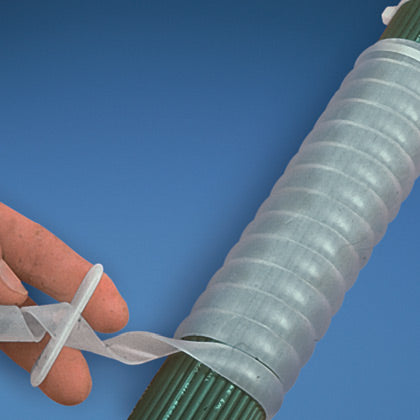

The T38N-TL Nylon Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allow s for use with irregular shapes. Installation tool supplied. Rated for use up to 149F (65C). Nylon. 0.38" (9.7 mm) diameter for 5/16" - 3" (7.9 mm " 76.2 mm) bundle range. Color Natural. 250’ (76.2 m) long.
Panduit - T38N-TL - Features
- Applications: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
- Allows breakouts of single/multiple cables
- Provides abrasion protection for wire, cables, hoses and tubing
- Multiple color allow easy identification of cable bundle
- Installation tool is supplied and the spiral wrap is reusable
Specifications
Specifications
Panduit - T38N-TL - Specifications
| UNSPSC Code | 43223300 |
|---|---|
| Technical Information | UL Recognized - E141152; UL94HB |
| Product Type | Spiral Wrap |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Material | Nylon 6.6 |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76.2 |
| Minimum Bundle Diameter (In.) | 0.3125 |
| Minimum Bundle Diameter (mm) | 7.9 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.38 |
| Outer Diameter (mm) | 9.5 |
| Overall Length (ft.) | 250 |
| Overall Length (m) | 76.2 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.03 |
| UPC | 07498370571 |
Panduit - T38N-TL - Package Information
| UPC | 07498370571 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 2.4647 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - T38N-TL - Videos
| Panduit T38N-TL Videos | Click to View |
|---|
