Brand: Panduit
|
SKU:
220096

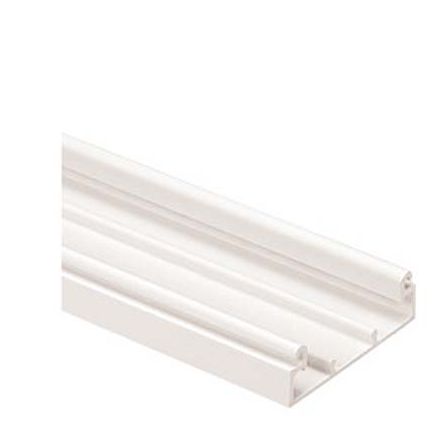

Panduit T45BEI8-A T-45 Power Rated Multi-Channel Raceway Base With Adhesive, 8ft, Electric Ivory
Regular price
$46.99
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T45BEI8-A T-45 Power Rated Multi-Channel Raceway Base With ...
Regular price
$46.99
Unit price
Description
Description
Panduit T45BEI8-A | Surface Raceway, T-45 Low Volt. Base, with ADH, 8 ft, Elec Ivory
The T-45 raceway base with adhesive provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-45 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 8 ft and Electric Ivory.
Panduit - T45BEI8-A - Features
- UL and CSA rated 600 V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Hinged cover allows easy access from either side
- Optional factory applied adhesive backing speeds installation
- Supplied with pre-punched mounting holes
- Tamper resistant
- Terminates using the T-45 hinged data or power brackets, offset box, or surface mount outlet box solutions
Specifications
Specifications
Panduit - T45BEI8-A - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T45BEI8-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T45BEI8-A |
| Item Description | Surface Raceway, T-45 Low Volt. Base, with ADH, 8 ft, Elec Ivory |
| Product Type | Channel |
| Color | Electric Ivory |
| Fitting Type | Channel |
| For Use With | T-45 Cover |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Adhesive |
| Overall Height (In.) | 0.73 |
| Overall Height (mm) | 18.5 |
| Overall Length (ft.) | 8.01 |
| Overall Length (m) | 2.4 |
| Overall Width (In.) | 2.38 |
| Overall Width (mm) | 60.4 |
| Internal Area (in²) | 2.12 |
| Internal Area (mm²) | 1367.73 |
| Sub Brand | Pan-Way |
| Standards Met | UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant. |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
Panduit - T45BEI8-A - Package Information
| UPC | 07498377282 |
|---|---|
| Standard Package Quantity | 8 |
| Standard Package Volume (cf) | 0.0860 |
| Standard. Ctn. Quantity | 160 |
| Standard. Ctn. Volume (cf) | 1.7192 |
Panduit - T45BEI8-A - Videos
| Video 1 | Click to View |
|---|
