Panduit T45CIW2 | Pan-Way T-45 Channel
Regular price
$13.98
Unit price
Brand: Panduit
|
SKU:
223023
Regular price
$13.98
Unit price
Description
Description

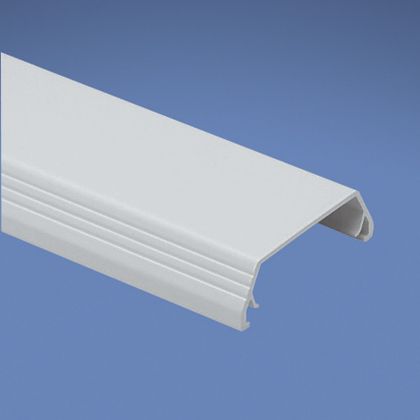

Panduit T45CIW2 | Pan-Way T-45 Channel
Securely cover your T-45 base, protecting the cabling installation providing a tamper resistant setup along perimeter walls with our raceway cover.
Panduit Pan-Way Raceway Cover, Trunking Hinged, Series: T-45, 6.6 ft Length, 2.38 in Width, 3/4 in Height, PVC, Off-White
Panduit - T45CIW2 - Features
- Unique size
- 1 in bend radius control fittings
- Multi-directional hinge
- Multi-channel capable
- Multi-termination options
Specifications
Specifications
Panduit - T45CIW2 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T45CIW2 |
| Product Type | T-45 Channel |
| Color | Off White |
| Fitting Type | Channel |
| For Use With | T-45 Base |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Length (m) | 2 |
| Overall Width (In.) | 2.38 |
| Overall Width (mm) | 60.4 |
| Overall Height (In.) | 0.75 |
| Overall Height (mm) | 19 |
| Internal Area (in²) | 2.12 |
| Internal Area (mm²) | 1367.73 |
| Sub Brand | Pan-Way |
| Standards Met | UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant. |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
| UPC | 07498377236 |
Panduit - T45CIW2 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8538.90.6000 |
