Brand: Panduit | SKU: 220118

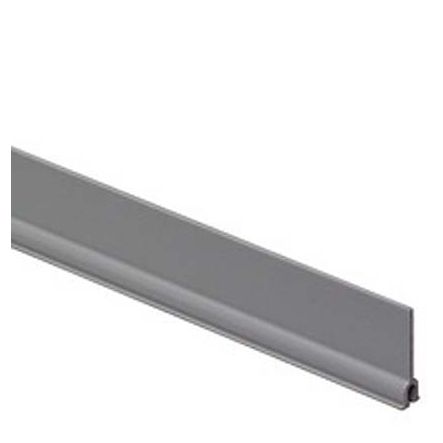

Panduit T45DW10 | T-45 Divider Wall 10ft, Gray

Name: Panduit T45DW10 | T-45 Divider Wall 10ft, Gray
Brand: Anixter
SKU: 220118
Price: 21.09 USD
Availability: InStock

$21.09

Description

Panduit T45DW10 | Surface Raceway, T-45 Divider Wall, 10 ft

The T-45 Divider Wall is designed to maintain separation of cables within the raceway. It is 10 ft.

UL and CSA rated 600 V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
Hinged cover allows easy access from either side
Optional factory applied adhesive backing speeds installation
Supplied with pre-punched mounting holes
Tamper resistant
Terminates using the T-45 hinged data or power brackets, offset box, or surface mount outlet box solutions

Brand Name	Panduit
Manufacturer Part Number	T45DW10
Item Description	Surface Raceway, T-45 Divider Wall, 10 ft
Product Type	Channel
Color	White
Fitting Type	Channel
For Use With	T-45 Base
Raceway Type	Low Voltage
Material	PVC
Mount Method	Snap-On
Overall Height (In.)	0.75
Overall Height (mm)	19
Overall Length (ft.)	10.01
Overall Length (m)	3
Overall Width (In.)	2.38
Overall Width (mm)	60.4
Internal Area (in²)	2.12
Internal Area (mm²)	1367.73
Sub Brand	Pan-Way
Standards Met	UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant.
Application	Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.
