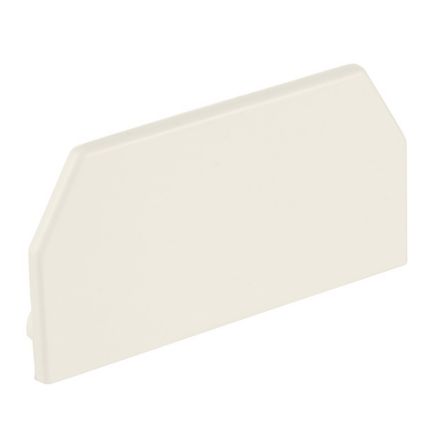

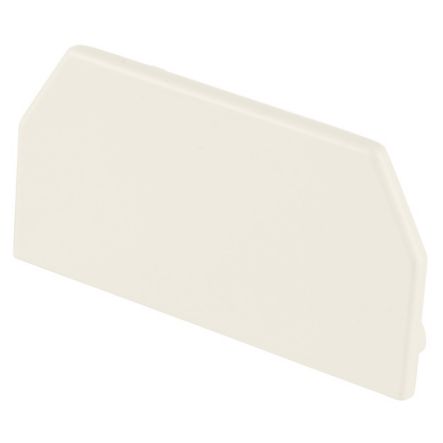

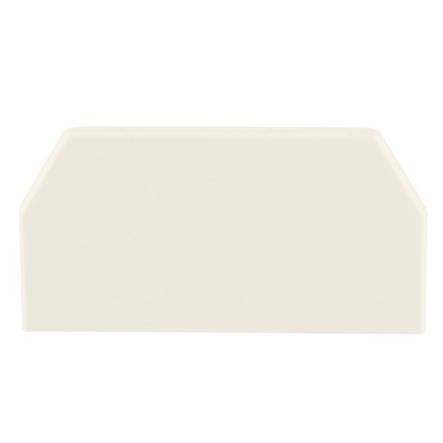

Panduit T45ECWH | T-45 End Cap Fitting, White
Regular price
$6.76
Unit price
Brand: Panduit
|
SKU:
220121
Regular price
$6.76
Unit price
Description
Description
Panduit T45ECWH | Surface Raceway, T-45 End Cap, White
The T-45 End Cap is designed to cap off the end of the raceway. It is White
Panduit - T45ECWH - Features
- End cap fitting. Used to terminate T-45 raceway.
- T-45 fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - T45ECWH - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T45ECWH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T45ECWH |
| Item Description | Surface Raceway, T-45 End Cap, White |
| Product Type | Channel |
| Color | White |
| Fitting Type | End Cap |
| For Use With | T-45 Raceway |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Height (In.) | 1.26 |
| Overall Height (mm) | 32 |
| Overall Length (ft.) | 0.07 |
| Overall Length (m) | 0.021336 |
| Overall Width (In.) | 2.38 |
| Overall Width (mm) | 60.4 |
| Sub Brand | Pan-Way |
| Standards Met | UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant. |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
Panduit - T45ECWH - Package Information
| UPC | 07498377356 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0185 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1850 |
Panduit - T45ECWH - Videos
| Video 1 | Click to View |
|---|
