Brand: Panduit | SKU: 220124

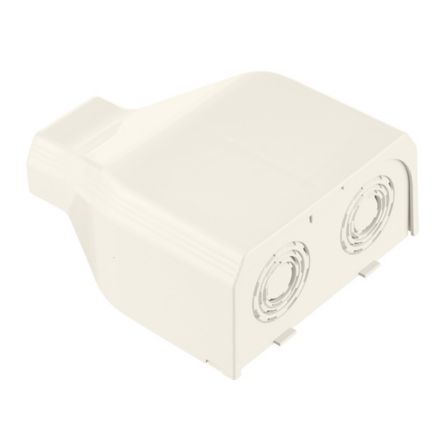

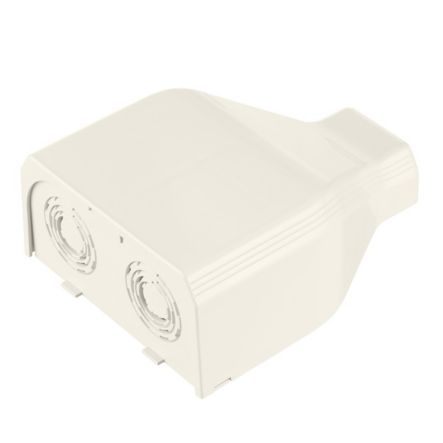

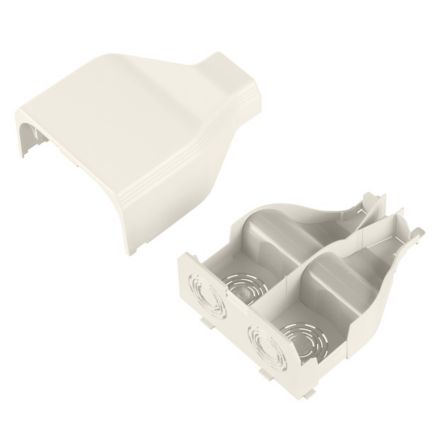

Panduit T45EEWH | T-45 Entrance End Fitting, White

Name: Panduit T45EEWH | T-45 Entrance End Fitting, White
Brand: Anixter
SKU: 220124
Price: 28.72 USD
Availability: InStock

$28.72

Shipping calculated at checkout.

Description

Panduit T45EEWH | Surface Raceway, T-45 Entrance End, White

The T-45 Entrance End is designed to maintain bed radius while routing cables into the T-45 raceway. It is White

Entrance end fitting. With knockouts for 1/2";, 3/4";, 1";, and 11/4"; conduit which allows entry from ceiling or wall.
T-45 fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems

Brand Name	Panduit
Manufacturer Part Number	T45EEWH
Item Description	Surface Raceway, T-45 Entrance End, White
Product Type	Channel
Color	White
Fitting Type	Entrance End
For Use With	T-45 Raceway
Raceway Type	Low Voltage
Material	PVC
Mount Method	Screw-On
Overall Height (In.)	2.86
Overall Height (mm)	72.6
Overall Length (ft.)	0.63
Overall Length (m)	0.2
Overall Width (In.)	5.71
Overall Width (mm)	145
Sub Brand	Pan-Way
Standards Met	UL Listed 95425, UL Listed E116129 , NEC: Article 388, LP-CSISPEC-T45-1, RoHS Compliant.
Application	Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.

Video 1	Click to View
