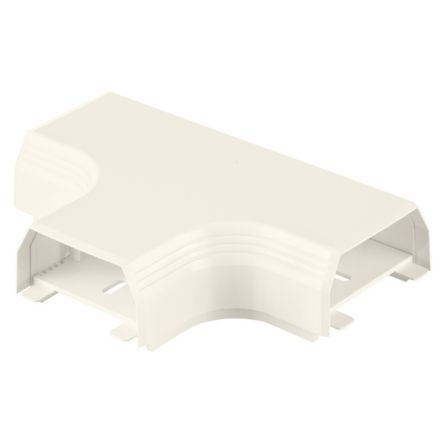

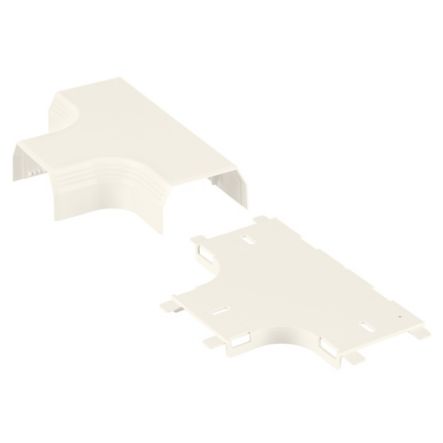

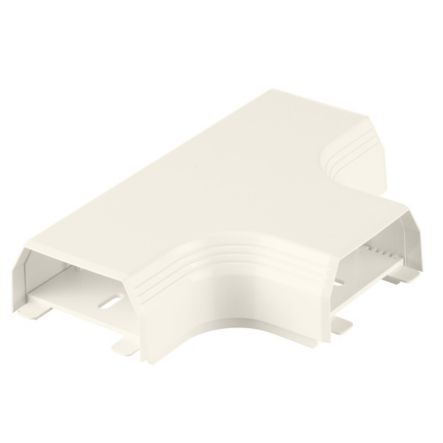

Panduit T45TWH | T-45 Tee Fitting, White
Regular price
$18.45
Unit price
Brand: Panduit
|
SKU:
220149
Regular price
$18.45
Unit price
Description
Description
Panduit T45TWH | Surface Raceway, T-45 Tee Fitting, White
The T-45 Tee Fitting is designed to route cables in a tee orientation. It is White.
Panduit - T45TWH - Features
- Tee fitting. Used to join T-45 raceway at tee intersections.
- T-45 fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - T45TWH - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T45TWH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T45TWH |
| Item Description | Surface Raceway, T-45 Tee Fitting, White |
| Product Type | Channel |
| Color | White |
| Fitting Type | Tee |
| For Use With | T-45 Raceway |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Height (In.) | 1.3 |
| Overall Height (mm) | 33 |
| Overall Length (ft.) | 0.56 |
| Overall Length (m) | 0.2 |
| Overall Width (In.) | 4.52 |
| Overall Width (mm) | 114.8 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls. |
Panduit - T45TWH - Package Information
| UPC | 07498377373 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0702 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.7021 |
Panduit - T45TWH - Videos
| Video 1 | Click to View |
|---|
