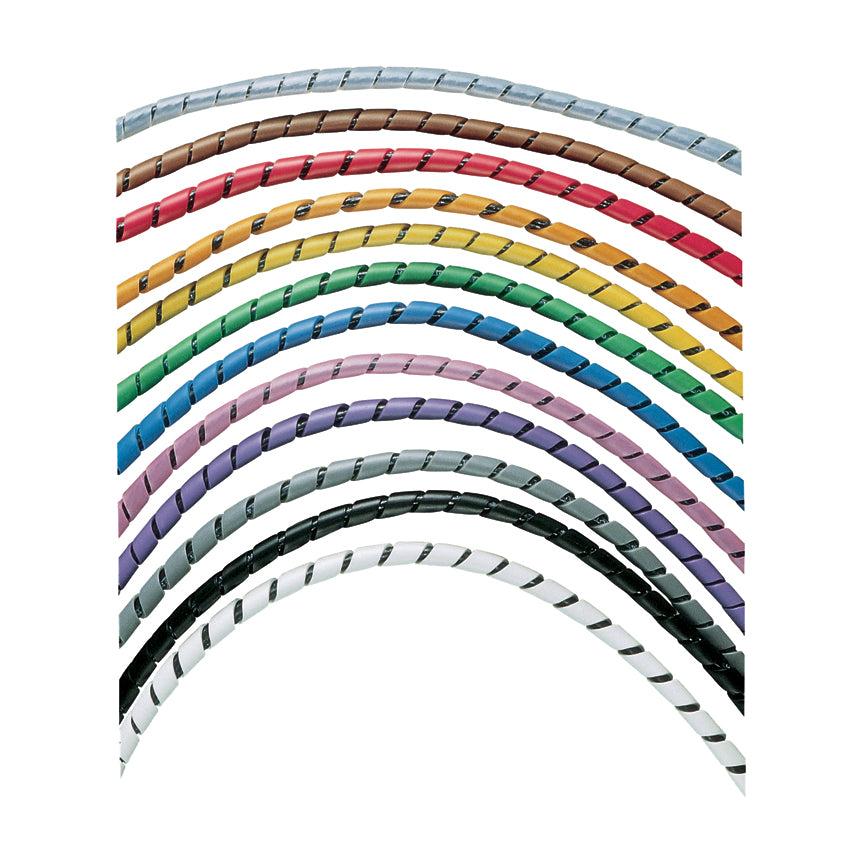

Panduit T50F-TL4Y | Spiral Wrap
Description
Description
Panduit Spiral Wrap, Reusable Reverse Cut, 1/2 in OD Dia, 250 ft Length, 0.06 in Thickness, 4 in Maximum Bundle Dia, 3/8 in Minimum Bundle Dia, 1/2 in Pitch, -40 to 122 deg F, Polyethylene, Yellow
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
The T50F-TL4Y Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protect ion allows for use with irregular shapes. Installation tool supplied. Rated for use up to 122F (50C). Polyethylene. 0.50" (12.7 mm) dia. for 3/8" " 4" (9.5 mm " 101.6 mm) bundle range. Color Yellow. 250’ (76.2 m) long.
Panduit - T50F-TL4Y - Features
- Applications: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
- Harness multiple cable into a single manageable bundle
- Allows breakouts of single/multiple cables
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
Specifications
Specifications
Panduit - T50F-TL4Y - Specifications
| UNSPSC Code | 43223300 |
|---|---|
| Technical Information | UL Recognized - E141152; UL94HB |
| Product Type | Spiral Wrap |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Yellow |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.375 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.5 |
| Outer Diameter (mm) | 12.7 |
| Overall Length (ft.) | 250 |
| Overall Length (m) | 76.2 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.06 |
| UPC | 07498346171 |
Panduit - T50F-TL4Y - Package Information
| UPC | 07498346171 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 2.4796 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - T50F-TL4Y - Videos
| Panduit T50F-TL4Y Videos | Click to View |
|---|
