Brand: Panduit
|
SKU:
392700
Panduit T50FR-CY | Spiral Wrap, Natural, FR PE, 0.375" Min Dia., 100' Roll, PK1
Regular price
$6.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T50FR-CY | Spiral Wrap, Natural, FR PE, 0.375" Min Dia...
Regular price
$6.29
Unit price
Description
Description

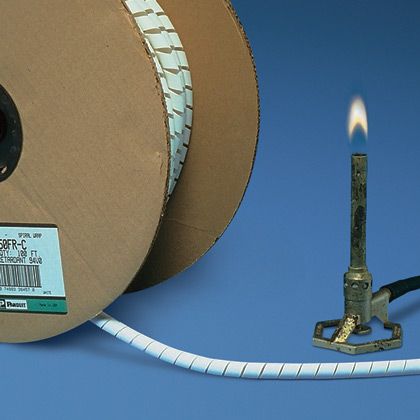

Panduit T50FR-CY | Spiral Wrap, Natural, FR PE, 0.375" Min Dia., 100' Roll, PK1
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
Panduit Spiral Wrap, 1/2 in OD Dia, 100 ft Length, 0.06 in Thickness, 4 in Maximum Bundle Dia, 0.38 in Minimum Bundle Dia, -4 to 122 deg F, Polyethylene, Natural
Panduit - T50FR-CY - Features
- Harness multiple cable into a single manageable bundle
- Allows breakouts of single/multiple cables
- Reverse cut
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
- Made of flame-retardant polyethylene
Specifications
Specifications
Panduit - T50FR-CY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T50FR-CY |
| Product Type | Spiral Wrap |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Environment | Indoor |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant, Flame-Retardant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.375 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.5 |
| Outer Diameter (mm) | 12.7 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152 |
| Wall Thickness (In.) | 0.06 |
| Wall Thickness (mm) | 1.52 |
| UPC | 07498342213 |
Panduit - T50FR-CY - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3926.90.9985 |
