Brand: Panduit
|
SKU:
1018708
Panduit T50FR-TLY | Spiral Wrap | UPC - 07498339759
Regular price
$652.40
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T50FR-TLY | Spiral Wrap | UPC - 07498339759
Regular price
$652.40
Unit price
Description
Description

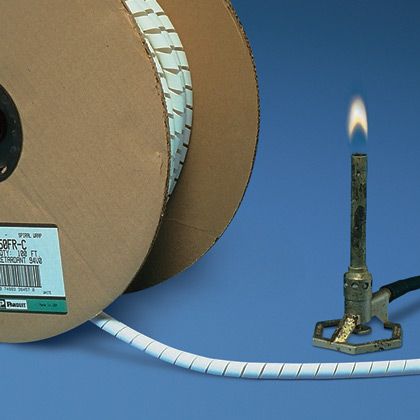

Panduit Spiral Wrap, 1/2 in OD Dia, 250 ft Length, 0.06 in Thickness, 4 in Maximum Bundle Dia, 3/8 in Minimum Bundle Dia, -4 to 122 deg F, Polyethylene, Natural
Features + Benefits
- Harness multiple cable into a single manageable bundle
- Allows breakouts of single/multiple cable
- Reverse cut
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
- Reusable
- Made of flame retardant polyethylene
Panduit T50FR-TLY Key Specs
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Note | T50FR-TLY replaces T50FR-TL |
| Product Type | Spiral Wrap |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94V-0 |
| Includes | Installation Tool |
| Material | Flame Retardant Polyethylene |
| Resistance Properties | Abrasion Resistance; Flame Retardant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.37 |
| Minimum Bundle Diameter (mm) | 9.5 |
| Minimum Operating Temperature (°C) | -20 |
| Minimum Operating Temperature (°F) | -4 |
| Outer Diameter (In.) | 0.5 |
| Outer Diameter (mm) | 12.7 |
| Overall Length (ft.) | 250 |
| Overall Length (m) | 76.2 |
| Standards Met | UL Recognized - E141152; UL94V-0 |
| Wall Thickness (In.) | 0.06 |
| Wall Thickness (mm) | 1.52 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable. |
Panduit T50FR-TLY Data Sheets
| Part Drawings | Natural Flame Retardant Poly Spiral Wrap GB0239BF | Download and View |
| Part Drawings | Spiral Wrap Part Number Set-up Chart: GB0239HA | Download and View |
| Brochures | Smart Control Panel Solutions Brosures CPCB186-SA-ENG | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
