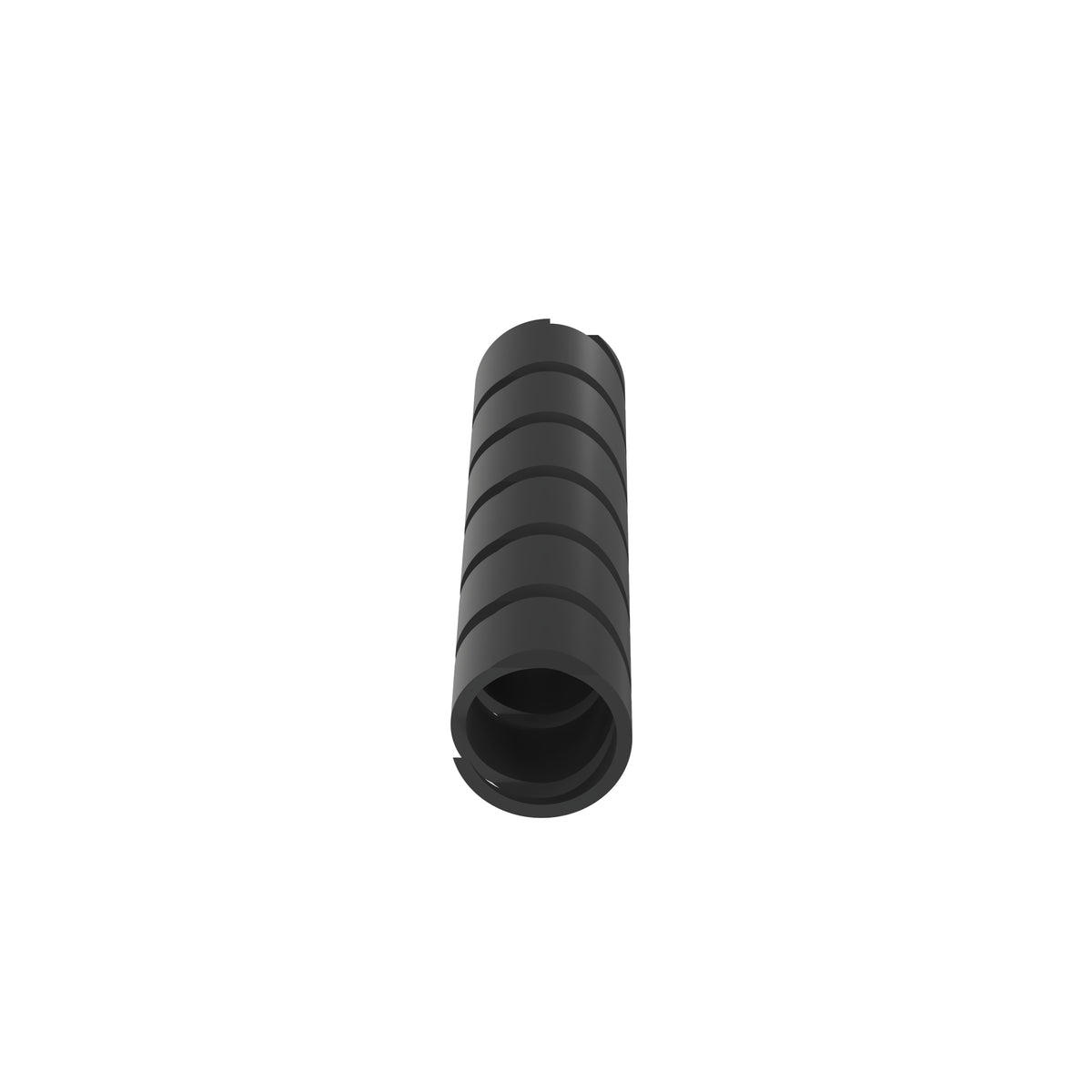

Panduit T62N-C0 | Spiral Wrap | UPC - 07498341020
Regular price
$939.37
Unit price
Brand: Panduit
|
SKU:
1018707
Regular price
$939.37
Unit price
Description
Description
Panduit Spiral Wrap, Reusable Reverse Cut, 5/8 in OD Dia, 100 ft Length, 0.035 in Thickness, 4-1/2 in Maximum Bundle Dia, 1/2 in Minimum Bundle Dia, 5/8 in Pitch, -40 to 149 deg F, Nylon 6.6, Black
Features + Benefits
- Allows breakouts of single/multiple cables
- Harness multiple cable into a single manageable bundle
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
Panduit T62N-C0 Key Specs
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Black |
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94-HB |
| Includes | Installation Tool |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | Abrasion Resistance; Weather Resistant |
| Maximum Bundle Diameter (In.) | 4.5 |
| Maximum Bundle Diameter (mm) | 114.3 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Bundle Diameter (In.) | 0.5 |
| Minimum Bundle Diameter (mm) | 12.7 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.62 |
| Outer Diameter (mm) | 15.9 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.035 |
| Wall Thickness (mm) | 0.89 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. Installation tool is supplied and the spiral wrap is reusable. |
Panduit T62N-C0 Data Sheets
| Part Drawings | Spiral Wrap - Natural GB0239BN | Download and View |
| Part Drawings | Spiral Wrap Part Number Set-up Chart: GB0239HA | Download and View |
| Brochures | Smart Control Panel Solutions Brosures CPCB186-SA-ENG | Download and View |
| Line Cards | Wire Abrasion Protection Line Card HSLC1-WW-ENG | Download and View |
