Brand: Panduit
|
SKU:
186556

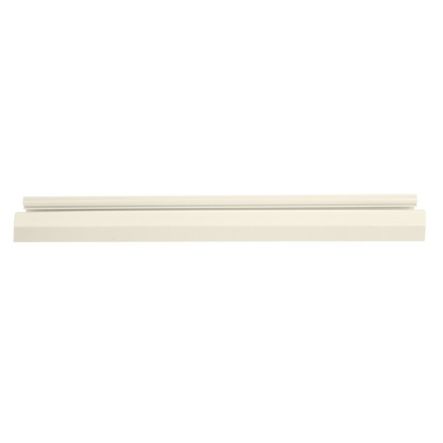

Panduit T70BIW6 T-70 Power Rated Multi-Channel Raceway Base 6ft, Off White
Regular price
$45.69
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T70BIW6 T-70 Power Rated Multi-Channel Raceway Base 6ft, Of...
Regular price
$45.69
Unit price
Description
Description
Panduit T70BIW6 | Surface Raceway, T-70 Base, 6 ft, Off-White
The T-70 raceway base provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-70 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 6 ft and Off-White.
Specifications
Specifications
Panduit - T70BIW6 - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T70BIW6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T70BIW6 |
| Item Description | Surface Raceway, T-70 Base, 6 ft, Off-White |
| Product Type | Channel |
| Color | Off White |
| Fitting Type | Channel |
| For Use With | T-70 Cover |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Height (In.) | 1.77 |
| Overall Height (mm) | 45 |
| Overall Length (ft.) | 6.01 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 4.07 |
| Overall Width (mm) | 103.4 |
| Internal Area (in²) | 5.15 |
| Internal Area (mm²) | 3322.57 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
Panduit - T70BIW6 - Package Information
| UPC | 07498363056 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.2703 |
| Standard. Ctn. Quantity | 60 |
| Standard. Ctn. Volume (cf) | 2.7030 |
Panduit - T70BIW6 - Videos
| Video 1 | Click to View |
|---|
Documents and Downloads
Documents and Downloads
