Brand: Panduit
|
SKU:
204288

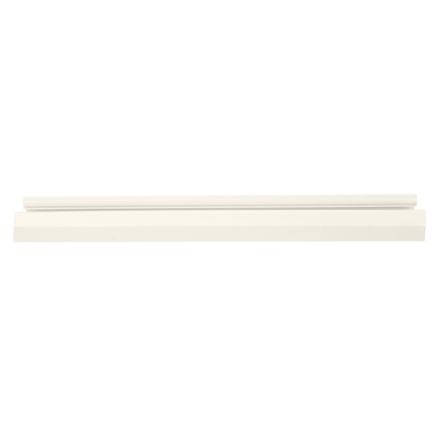

Panduit T70BWH10 T-70 Power Rated Multi-Channel Raceway Base 10ft, White
Regular price
$75.71
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T70BWH10 T-70 Power Rated Multi-Channel Raceway Base 10ft, ...
Regular price
$75.71
Unit price
Description
Description
Panduit T70BWH10 | Surface Raceway, T-70 Base, 10 ft, White
The T-70 raceway base provides solutions for routing low voltage, fiber optic, and/or power cabling along perimeter walls. The T-70 raceway is supplied with pre-punched mounting holes and is tamper resistant. It is 10 ft and White.
Panduit - T70BWH10 - Features
- UL and CSA rated 600V; meets UL 5A and CSA C22.2 No. 62.1-03 standards; FT4 rated CE - Compliant with LVD 2006/95/EC (EN50085-1, EN 50085-2-1)
- Large cable capacity with aesthetically pleasing design
- Tamper resistant
- Compatible with NEMA standard 70mm faceplates or Pan-Way(TM) Classic Series Snap-On Faceplates
- Transitions to PANDUIT T-45 and LD profile raceway
- Supplied with pre-punched mounting holes
Specifications
Specifications
Panduit - T70BWH10 - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T70BWH10 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T70BWH10 |
| Item Description | Surface Raceway, T-70 Base, 10 ft, White |
| Product Type | Channel |
| Color | White |
| Fitting Type | Channel |
| For Use With | T-70 Cover |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Height (In.) | 1.77 |
| Overall Height (mm) | 45 |
| Overall Length (ft.) | 10.01 |
| Overall Length (m) | 3 |
| Overall Width (In.) | 4.07 |
| Overall Width (mm) | 103.4 |
| Internal Area (in²) | 5.15 |
| Internal Area (mm²) | 3322.57 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
| Part Features | T-70 raceway base, 10 ft. length. Overall raceway dimension (T-70 base and cover): 4.07 x 1.77 (103.3mm x 45.0mm) Supplied with pre-punched mounting holes. Compatible with Pan-Way Classic Style snap-on faceplates or NEMA standard 70mm faceplates. Transitions to Panduit T-45 and LD profile raceway. |
Panduit - T70BWH10 - Package Information
| UPC | 07498372737 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.5566 |
| Standard. Ctn. Quantity | 60 |
| Standard. Ctn. Volume (cf) | 3.3394 |
Panduit - T70BWH10 - Videos
| Video 1 | Click to View |
|---|
