Panduit T70FSB | Faceplate | UPC - 07498379114

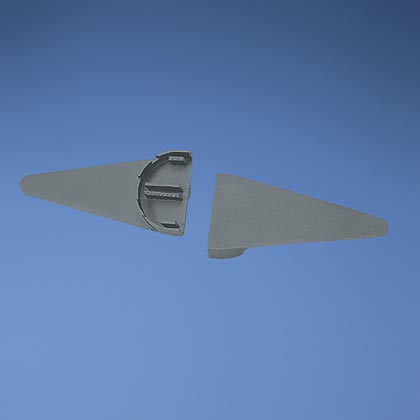

Fiber spool bracket. Each piece consists of two halves that snap into base of T-70 or Twin-70 raceway. Provides method to contain one meter or more of fiber slack and acts as a strain relief while maintaining a minimum 30mm bend radius. Bracket separation can be adjusted to fit the length of slack required.

---

Panduit T70FSB | Faceplate | UPC - 07498379114 Key Specs

Product Type	Faceplate
Color	International Gray
Fitting Type	Bracket
For Use With	T70/T702
Raceway Type	Low Voltage
Material	PVC
Mount Method	Snap-On
Overall Height (In.)	3.81
Overall Height (mm)	96.8
Overall Length (ft.)	0.05
Overall Width (In.)	2
Overall Width (mm)	50.8
Sub Brand	Pan-Way
Standards Met	CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129
Application	Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density.
