Brand: Panduit
|
SKU:
211107

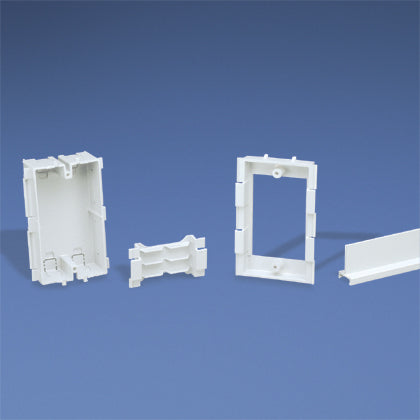

Panduit T70HB3-X | Surface Raceway, T-70 3 Sided Hanging Box for S/G Electric Outlet
Regular price
$139.86
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T70HB3-X | Surface Raceway, T-70 3 Sided Hanging Box for S/...
Regular price
$139.86
Unit price
Description
Description
Panduit T70HB3-X | Surface Raceway, T-70 3 Sided Hanging Box for S/G Electric Outlet
Effortlessly route cables with a three-sided hanging box. Perfect for single-gang electrical outlets, it ensures a clean, organized setup in any environment.
3-sided Hanging Box, Snap-On/Screw-On, for T-70, PVC, International Gray, 0.23’
Panduit Pan-Way Hanging Box, 1-Gang, 6.28 in Length, 2.78 in W, 1.56 in Height, Threaded Mount, For Use With: Pan-Way TG-70 Surface Raceway System, PVC, Gray, 0 to 50 deg C
Panduit - T70HB3-X - Features
- Used to mount NEMA standard single gang electrical outlets and devices with either screw-on or snap on single gang faceplates when there are communications cables in the raceway
- Box is low profile for increased channel capacity and does not require breakout removal
- T-70 and Twin-70 raceway accessories consist of device mounting brackets, snap-on device brackets, hanging boxes and 3-sided hanging boxes used to mount NEMA standard single gang electrical outlets and or communication devices
- Specification Description
- 3-Sided Hanging Box
- Material: PVC
- Color: Gray
- Mounting: Screw-On
- Product Size: 70
- Dimension: 6.28 Inch Length x 2.78 Inch Width x 1.56 Inch Height (159.5 mm x 70.6 mm x 39.6 mm)
Specifications
Specifications
Panduit - T70HB3-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T70HB3-X |
| UNSPSC Code | 39131700 |
| Product Type | T-70 Fittings & Accessories |
| Color | International Gray |
| Fitting Type | Insert |
| For Use With | T-70 |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Screw-On |
| Overall Length (ft.) | 0.23 |
| Overall Length (m) | 0.1 |
| Overall Width (In.) | 6.28 |
| Overall Width (mm) | 159.5 |
| Overall Height (In.) | 1.56 |
| Overall Height (mm) | 39.6 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
| Part Features | T-70 or Twin-70 hanging box. |
| UPC | 07498369879 |
Panduit - T70HB3-X - Videos
| Panduit T70HB3-X Video 1 | Click to View |
|---|
