Panduit T70OCEI | T-70 Outside Corner Fitting, Electric Ivory
Regular price
$26.62
Unit price
Description
Description
Panduit T70OCEI | Surface Raceway, T-70 Outside Corner, Electric Ivory

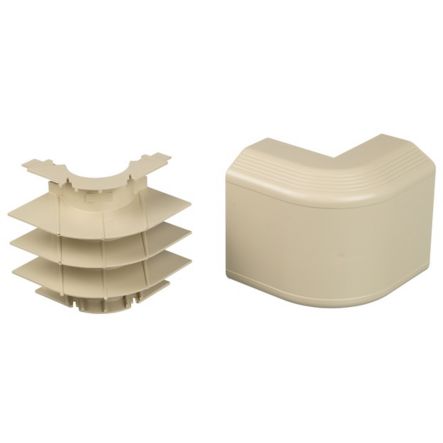

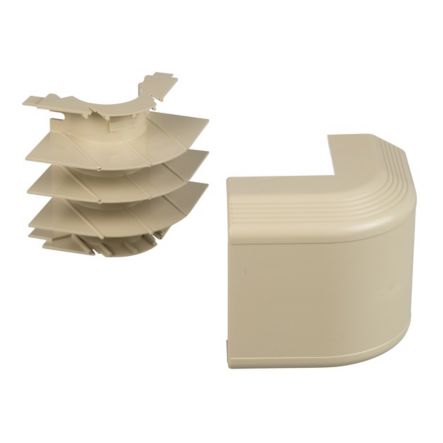

The outside corner fitting is used to join sections of T-70 raceway at outside corners while maintaining separation of power and data. It is Electric Ivory.
Panduit - T70OCEI - Features
- T-70 fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - T70OCEI - Product Categories
- Wire Routing, Management & Protection
- Multichannel Raceway
Panduit - T70OCEI - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T70OCEI |
| Item Description | Surface Raceway, T-70 Outside Corner, Electric Ivory |
| Product Type | Faceplate |
| Color | Electric Ivory |
| Fitting Type | Outside Corner |
| For Use With | T-70 Raceway |
| Raceway Type | Low Voltage |
| Material | PVC |
| Mount Method | Snap-On |
| Overall Height (In.) | 4.4 |
| Overall Height (mm) | 111.8 |
| Overall Length (ft.) | 0.37 |
| Overall Length (m) | 0.1 |
| Overall Width (In.) | 4.3 |
| Overall Width (mm) | 109.2 |
| Sub Brand | Pan-Way |
| Standards Met | CE Compliant, UL5A Listed, UL Listed 95425, UL Listed E116129 |
| Application | Provides Solutions for Routing Low Voltage, Fiber Optic and/or Power Cabling Along Perimeter Walls.T-70 Features the Workstation Outlet Center Offset Box, Which Provides an Offset Solution to Maximize Channel Capacity and Outlet Density. |
Panduit - T70OCEI - Package Information
| UPC | 07498363075 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0744 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.7439 |
Panduit - T70OCEI - Videos
| Video 1 | Click to View |
|---|
