Panduit T75F-C | T75F-C Spiral Wrap, Natural, PE, 0.625" Min D...
Description
Description

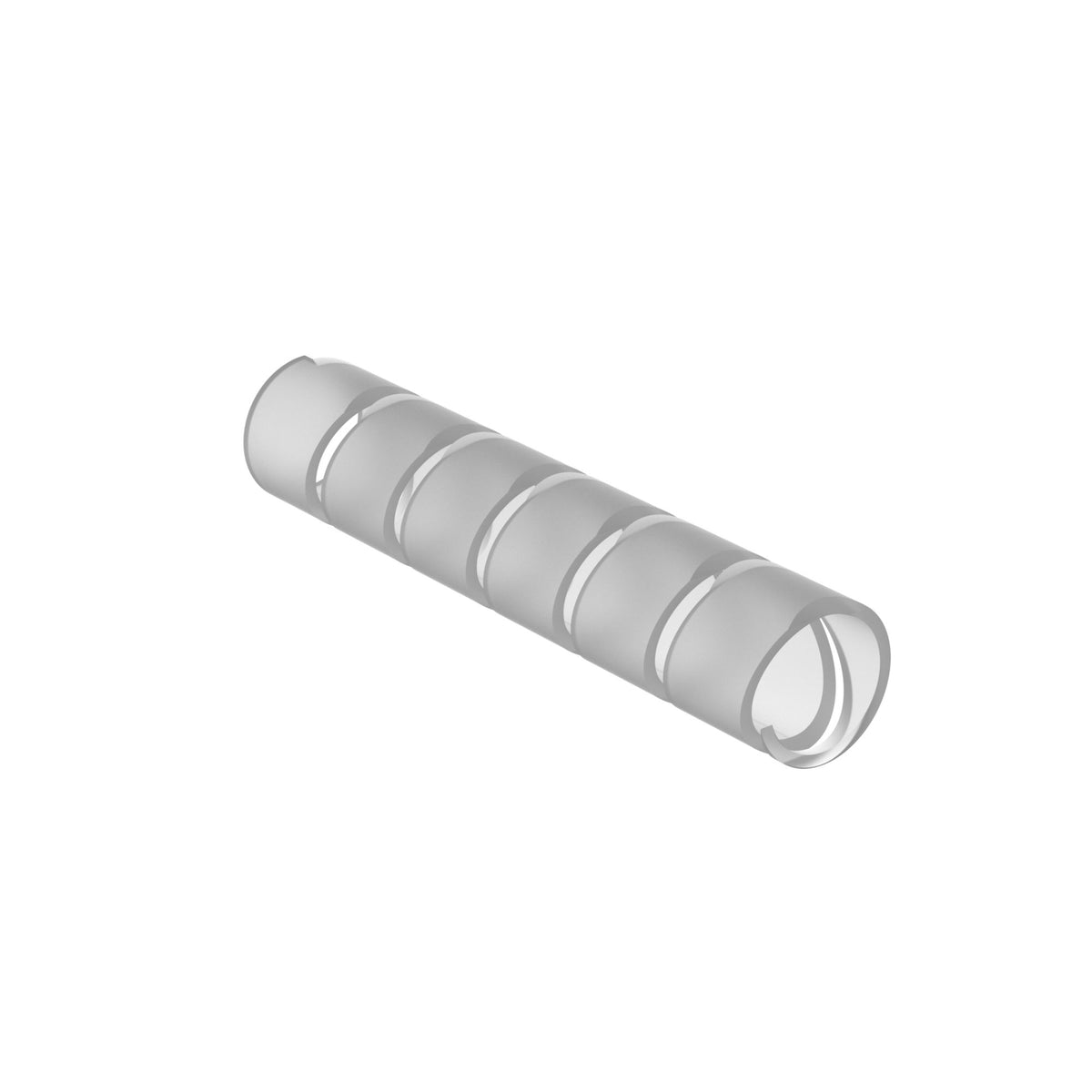

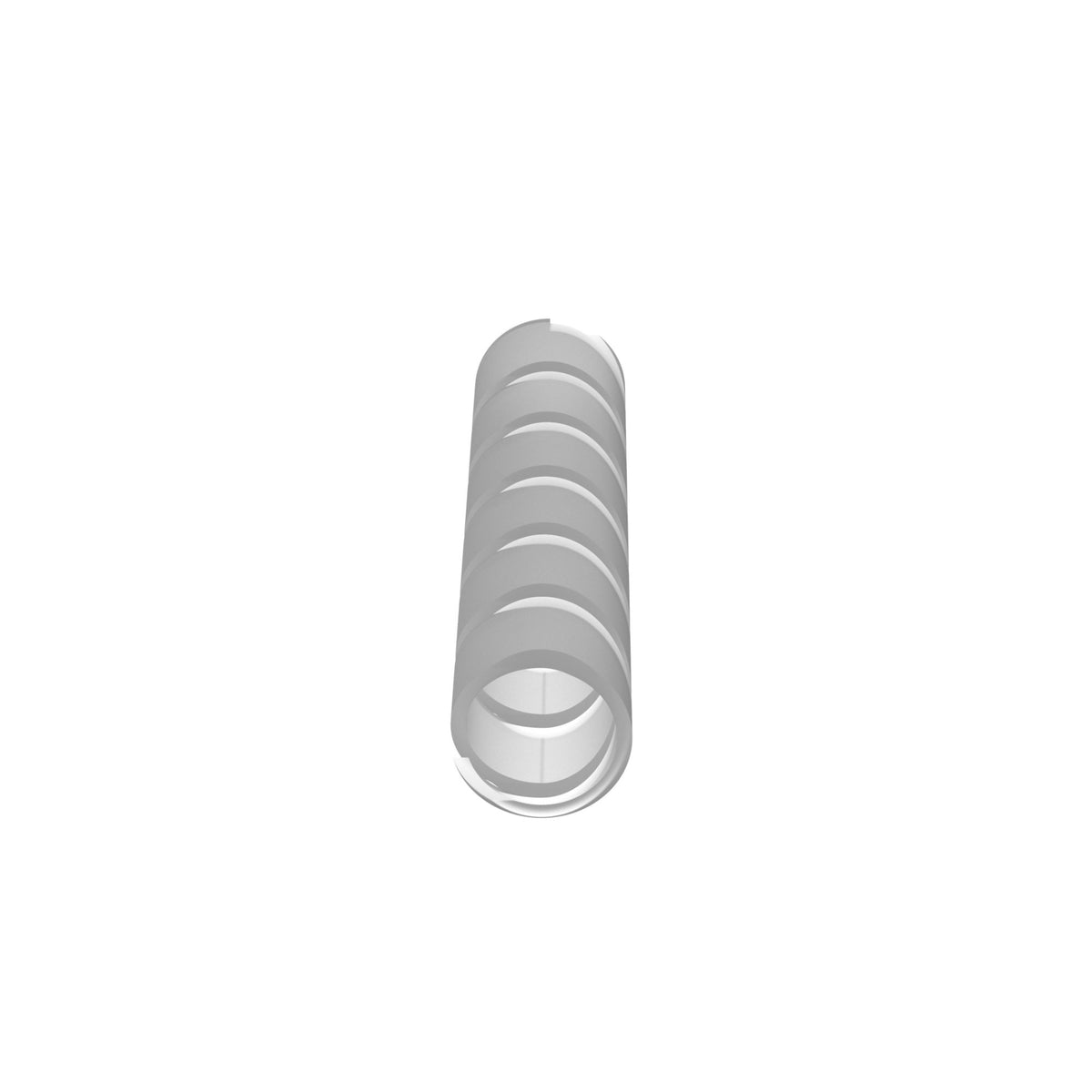

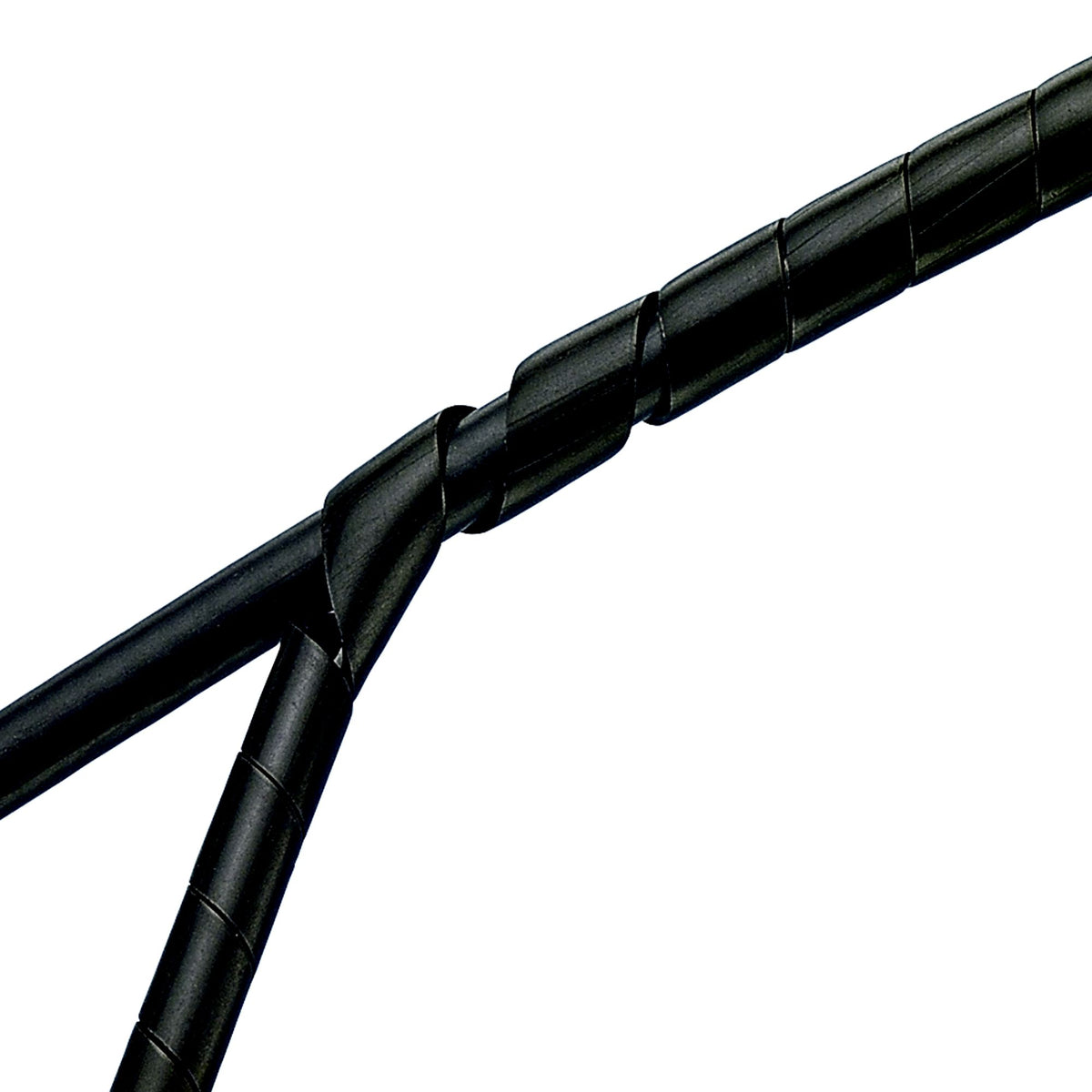

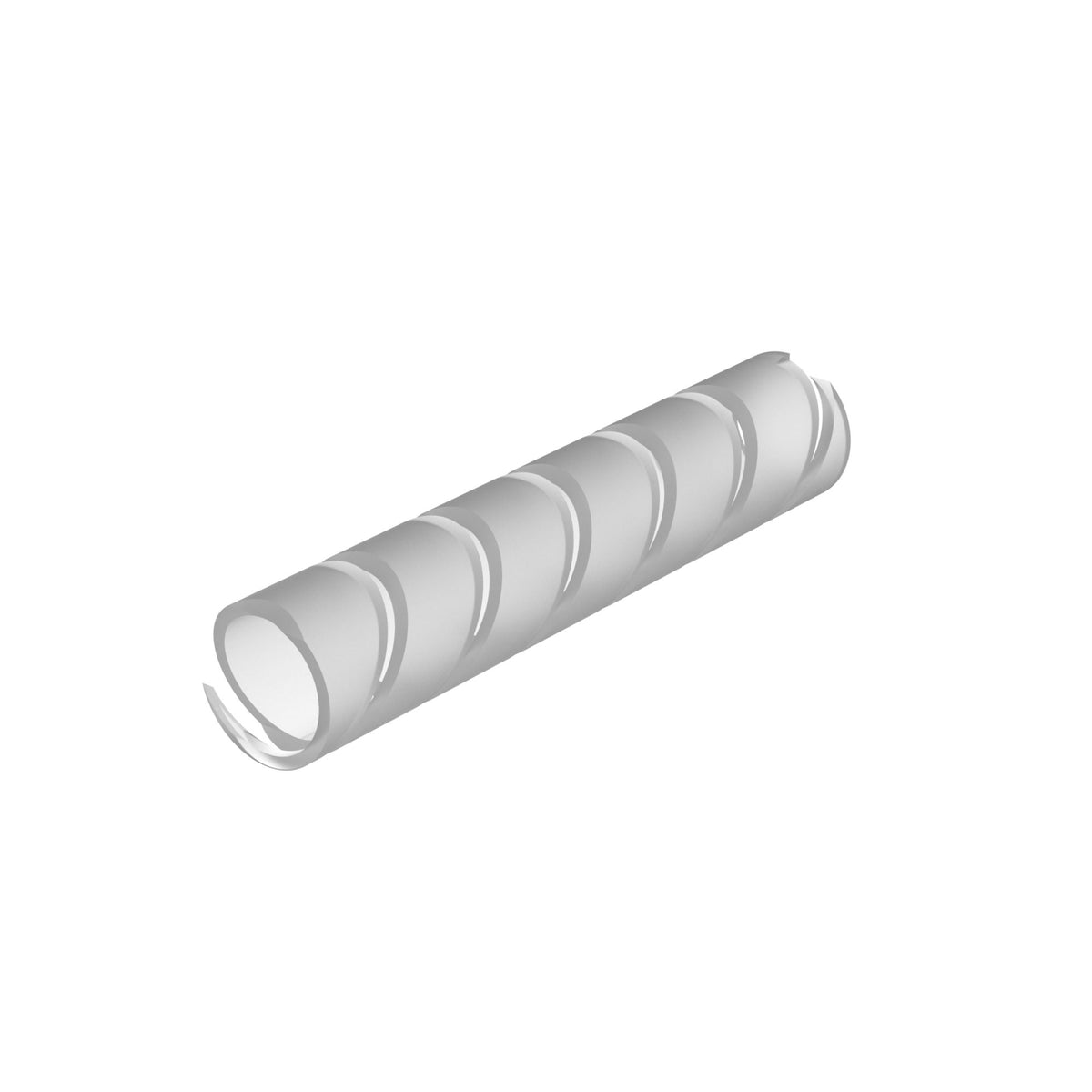

The T75F-C Polyethylene Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows for use with irregular shapes. Rated for use up to 122°F (50°C). 0.75" (19.1 mm) diameter x 100' (30.5 m) long. Bundle Diameter Range 0.625" to 5" (15.9 mm to 127.0 mm). Color Natural.
Panduit T75F-C - SPIRAL WRAP - SPIRAL WRAP 3/4" OD
Specifications
Specifications
Panduit - T75F-C - Product Categories
- Wire Routing, Management & Protection
- Cable Sleeves, Tools & Wraps
Panduit - T75F-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | T75F-C |
| Item Description | T75F-C Spiral Wrap, Natural, PE, 0.625" Min Dia., PK1 |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Natural |
| Environment | Indoor |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion Resistance |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Maximum Operating Temperature (°C) | 50 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Bundle Diameter (In.) | 0.625 |
| Minimum Bundle Diameter (mm) | 15.9 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.75 |
| Outer Diameter (mm) | 19.1 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (In.) | 0.06 |
| Wall Thickness (mm) | 1.65 |
| Part Features | Allows breakouts of single/multiple cables, Provides abrasion protection for wire, cables, hoses and tubing. Multiple colors allow for easy identification of cable bundles. The spiral wrap is reusable. |
Panduit - T75F-C - Package Information
| UPC | 07498370619 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 2.4780 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
