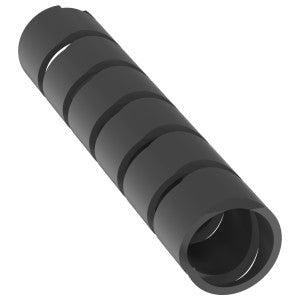

Panduit T75F-C0 | Spiral Wrap, Black, UV PE, 0.625" Min Dia, PK1
Description
Description
The T75F-C0 Polyethylene Spiral Wrap provides continuous abrasionprotection for wires, cables, and tubing. The spiral wrap harnesses multiplecables into a single manageable bundle while allowing for breakouts.Lightweight, flexible, durable protection allows for use with irregular shapes.Rated for use up to 122°F (50°C). 0.75" (19.1 mm) diameter x 100' (30.5 m)long. Bundle Diameter Range 0.625" to 5" (15.9 mm to 127.0 mm). ColorBlack.
Specifications
Specifications
Panduit - T75F-C0 - Specifications
| Color | Black |
|---|---|
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94-HB |
| Material | Polyethylene |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (mm) | 15.9 |
| Maximum Operating Temperature (°F) | 122 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (mm) | 19.1 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized - E141152; UL94HB |
| Wall Thickness (mm) | 1.65 |
