Brand: Panduit
|
SKU:
T75N-C
Panduit T75N-C | Spiral Wrap | UPC - 07498370621
Regular price
$905.56
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit T75N-C | Spiral Wrap | UPC - 07498370621
Regular price
$905.56
Unit price
Description
Description

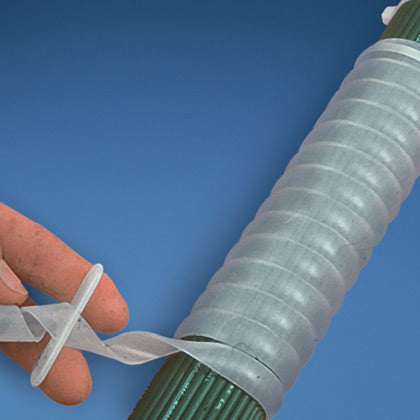

Panduit Spiral Wrap, Reusable Reverse Cut, 3/4 in OD Dia, 100 ft Length, 0.04 in Thickness, 5 in Maximum Bundle Dia, 5/8 in Minimum Bundle Dia, 7/8 in Pitch, -40 to 149 deg F, Nylon 6.6, Natural
Features + Benefits
- Allows breakouts of single/multiple cables
- Harness multiple cable into a single manageable bundle
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
Panduit T75N-C | Spiral Wrap | UPC - 07498370621 Key Specs
| Application | (1) Harness Multiple Cables Into a Single Manageable Bundle (2) Allows Breakouts of Single/Multiple Cables (3) Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Product Type | Spiral Wrap |
| Color | Natural |
| Flammability Rating | HB |
| Includes | Installation Tool |
| Material | Nylon 6.6 |
| Resistance Properties | Abrasion Protection |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 1.5 |
| Maximum Operating Temperature (°C) | 65 |
| Maximum Operating Temperature (°F) | 149 |
| Minimum Bundle Diameter (In.) | 0.62 |
| Minimum Bundle Diameter (mm) | 15.9 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Outer Diameter (In.) | 0.75 |
| Outer Diameter (mm) | 19 |
| Overall Length (ft.) | 100 |
| Overall Length (m) | 30.5 |
| Standards Met | UL Recognized E141152 |
Panduit T75N-C | Spiral Wrap | UPC - 07498370621 Data Sheets
| Part Drawings | Spiral Wrap - Natural GB0239BN | Download and View |
| Part Drawings | Spiral Wrap Part Number Set-up Chart: GB0239HA | Download and View |
| Catalog Cut Sheets | Industrial Electrical Solutions | Download and View |
Panduit T75N-C | Spiral Wrap | UPC - 07498370621 Environmental Information
| Panduit's RoHS Statement | Download and View |
