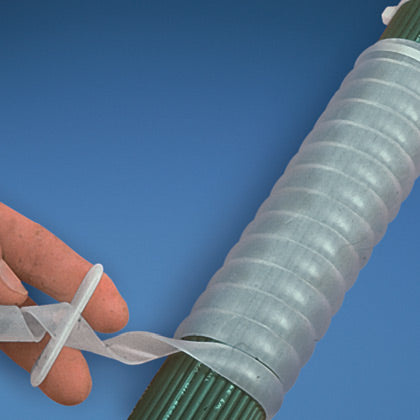

Panduit T75T-X | Spiral Wrap
Description
Description
Panduit Spiral Wrap, Reusable Reverse Cut, 3/4 in OD Dia, 10 ft Length, 0.03 in Thickness, 5 in Maximum Bundle Dia, 5/8 in Minimum Bundle Dia, 7/8 in Pitch, -454 to 356 deg F, TFE, Natural
Our spiral wrap organizes and protects wires and cables with a lightweight, flexible design that allows for easy access and customization, ideal for various applications.
The T75T-X TFE Spiral Wrap provides continuous abrasion protection for wires, cables, and tubing. The spiral wrap harnesses multiple cables into a single manageable bundle while allowing for breakouts. Lightweight, flexible, durable protection allows f or use with irregular shapes. Installation tool supplied. Rated for use up to 356F (180C). Material: TFE. 0.75" (19.1 mm) diameter for 5/8" " 5" (15.9 mm" 127.0 mm) bundle range. Color Natural. 10’ (3.1 m) long.
Panduit - T75T-X - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Applications: Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing
- Harness multiple cable into a single manageable bundle
- Allows breakouts of single/multiple cables
- Multiple color allow easy identification of cable bundle
- Installation tool supplied in each package
Specifications
Specifications
Panduit - T75T-X - Specifications
| UNSPSC Code | 43223300 |
|---|---|
| Technical Information | UL Recognized - E141152; UL94V-0 |
| Product Type | Spiral Wrap |
| Application | Harness Multiple Cables Into a Single Manageable Bundle; Allows Breakouts of Single/Multiple Cables; Provides Abrasion Protection for Wire, Cables, Hoses, and Tubing |
| Color | Natural |
| Environment | Indoor and Outdoor |
| Flammability Rating | UL94V-0 |
| Material | TFE |
| Resistance Properties | Abrasion-Resistant |
| Maximum Bundle Diameter (In.) | 5 |
| Maximum Bundle Diameter (mm) | 127 |
| Minimum Bundle Diameter (In.) | 0.625 |
| Minimum Bundle Diameter (mm) | 15.9 |
| Maximum Operating Temperature (°C) | 260 |
| Maximum Operating Temperature (°F) | 500 |
| Minimum Operating Temperature (°C) | -270 |
| Minimum Operating Temperature (°F) | -454 |
| Outer Diameter (In.) | 0.75 |
| Outer Diameter (mm) | 19.1 |
| Overall Length (ft.) | 10 |
| Overall Length (m) | 3.05 |
| Standards Met | UL Recognized - E141152; UL94V-0 |
| Wall Thickness (In.) | 0.03 |
| UPC | 07498369988 |
Panduit - T75T-X - Package Information
| UPC | 07498369988 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.1256 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - T75T-X - Videos
| Panduit T75T-X Videos | Click to View |
|---|
