Panduit TA1S8-M | TA1S8-M Tie Anchor Mount, Natural, PA 6.6, 0.75x0...
Description
Description

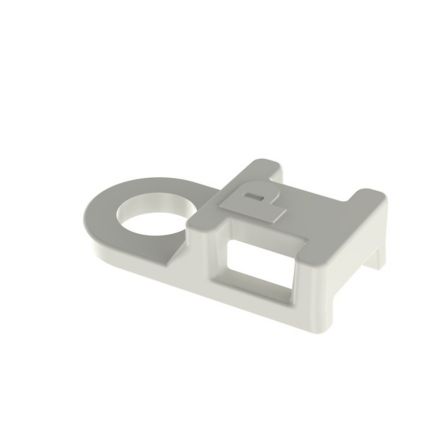

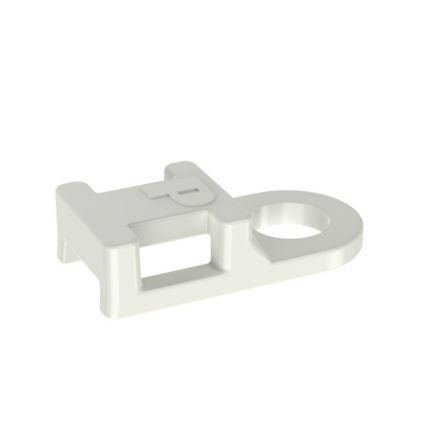

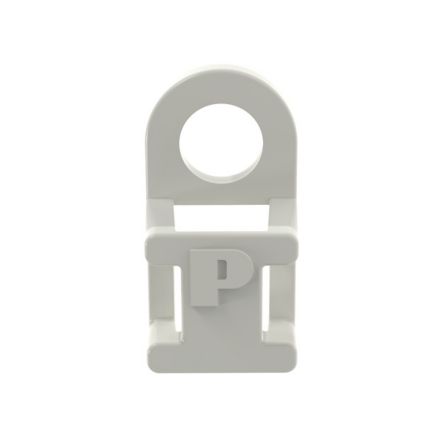

Panduit TA1S8-M cable tie anchor mount is a low profile and versatile screw-installed mount that is ideal for applications where space is limited. This mount has four-way cable tie entry for easy orientation of wires and cables with the option to mount in-line or perpendicular to the wire bundle. Install with a #8 (M4) screw. Use with Miniature, Intermediate and Standard Panduit Cable Ties. For indoor use, are made of Nylon 6.6, are natural in color, and comes in packages of 1000.
Panduit - TA1S8-M - Features
- Low profile and versatile these screw-installed mounts can be ideal for applications where space is limited.
- 4-way cable tie entry makes part orientation fast and easy
- Mounted in-line or perpendicular to the wire bundle
- Install with a screw or rivet for a strong, secure installation
- Small overall size allows for use where space is limited
Specifications
Specifications
Panduit - TA1S8-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TA1S8-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TA1S8-M |
| Item Description | TA1S8-M Tie Anchor Mount, Natural, PA 6.6, 0.75x0.38", #8 Screw, PK1000 |
| Application | Low Profile Tie Anchor Mounts, Versatile Mount for Applications where Space is Limited |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #8 |
| Overall Height (In.) | 0.19 |
| Overall Height (mm) | 4.8 |
| Overall Length (In.) | 0.74 |
| Overall Length (mm) | 18.7 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 50.3 |
| Standards Met | CE Compliant, UL Recognized E136577, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - TA1S8-M - Package Information
| UPC | 07498358021 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0668 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.3338 |
Panduit - TA1S8-M - Videos
| Video 1 | Click to View |
|---|
