Brand: Panduit
|
SKU:
264590
Panduit TA2-M | TA2-M Cable Tie Mount
Regular price
$371.12
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TA2-M | TA2-M Cable Tie Mount
Regular price
$371.12
Unit price
Description
Description

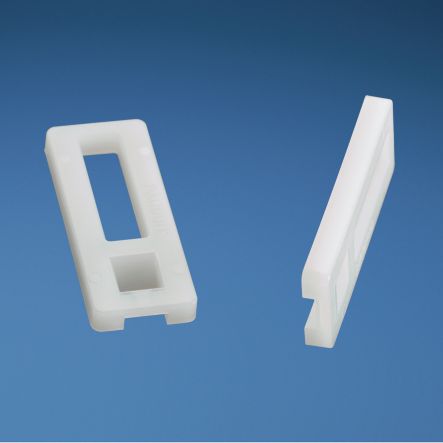

Panduit TA2-M | TA2-M Cable Tie Mount
The cable tie mount in natural color is applied with a #10 (M5) screw. It is made of nylon 6.6, which increases mechanical strength, heat and wear resistance, and stiffness in indoor environments. It comes in packages of 1000.
Specifications
Specifications
Panduit - TA2-M - Product Categories
- Wire Routing, Management & Protection
- Cable Tie Mounts
Panduit - TA2-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TA2-M |
| Item Description | TA2-M Cable Tie Mount |
| Application | (1) To Install Perpendicular to the Wire Bundle(2) Low Profile Design Keeps Bundle Close to Mounting Surface Where Overhead Space is Limited |
| Product Type | Cable Tie Mount |
| Color | Natural |
| Flammability Rating | UL94V-2 |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Loop Tensile Strength (N) | 133 |
| Minimum Loop Tensile Strength (lb) | 30 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw |
| Mounting Hole Thread Size | #10 |
| Overall Height (In.) | 0.125 |
| Overall Height (mm) | 3.2 |
| Overall Length (In.) | 1.225 |
| Overall Length (mm) | 31.1 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Standards Met | cULus 62275 Type 1,11 (Recognized, E136577), CE Compliant,, RoHS Compliant |
| For Use With | Miniature, Intermediate, Standard Cross-Section Ties |
Panduit - TA2-M - Package Information
| UPC | 07498358061 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1497 |
| Standard. Ctn. Quantity | 5000 |
| Standard. Ctn. Volume (cf) | 0.7483 |
