Panduit TF10WH-X | Surface Raceway, LD10 Tee Fitting, Low Voltage, ...
Regular price
$25.06
Unit price
Brand: Panduit
|
SKU:
205953
Regular price
$25.06
Unit price
Description
Description

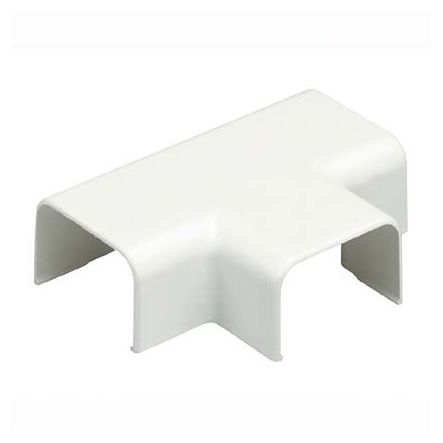

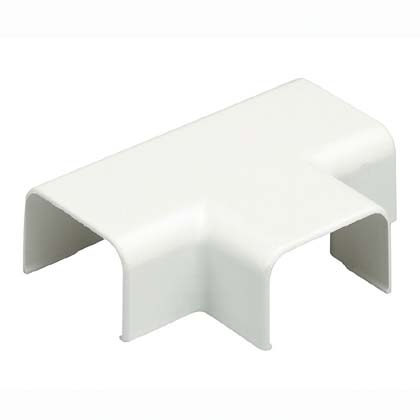

Panduit TF10WH-X | Surface Raceway, LD10 Tee Fitting, Low Voltage, White
Simplify your cabling and streamline your tee configuration with our low voltage tee fitting.
Tee fitting for use with LD10 raceway, White, ABS, Length 3.4 in.
Panduit Pan-Way Tee Fitting, Low Voltage, Snap-On Mounting, For Use With: LD10 Surface Raceway System, ABS, White, 3.4 in L x 1.6 in W x 0.91 in H Dimensions
Specifications
Specifications
Panduit - TF10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TF10WH-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Low Voltage Fitting |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Tee |
| For Use With | LD10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards |
| Overall Length (In.) | 3.4 |
| Overall Length (mm) | 86.4 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Overall Height (In.) | 0.91 |
| Overall Height (mm) | 23.1 |
| Application | Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment |
| UPC | 07498358645 |
Panduit - TF10WH-X - Videos
| Panduit TF10WH-X Video 1 | Click to View |
|---|
