Panduit TFC10WH-X | Surface Raceway, LD10 Tee fitting, White
Regular price
$4.59
Unit price
Brand: Panduit
|
SKU:
165438-EA
Regular price
$4.59
Unit price
Description
Description

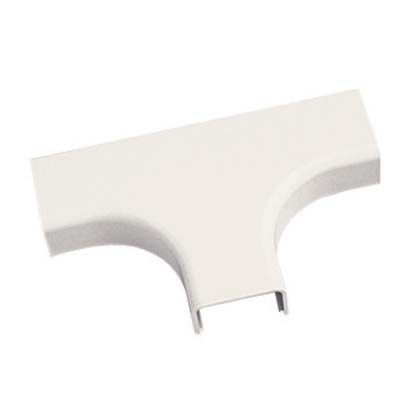

Panduit TFC10WH-X | Surface Raceway, LD10 Tee fitting, White
The tee fitting extends cable runs in a tee configuration and is used with LD10 raceway. It is White.
Specifications
Specifications
Panduit - TFC10WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - TFC10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TFC10WH-X |
| Item Description | Surface Raceway, LD10 Tee fitting, White |
| Product Type | Bend Radius Control Fitting |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Tee |
| For Use With | LD10, LDPH10 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Overall Length (In.) | 4.73 |
| Overall Length (mm) | 120.1 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Brand Name - TFC10WH-X - Package Information
| UPC | 07498352575 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.1317 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.6585 |
Brand Name - TFC10WH-X - Videos
| Video URL 1 | Click to View |
|---|
