Panduit TFC3EI-X | Surface Raceway, LD3 Tee Fitting, Low Votage, El...
Regular price
$32.63
Unit price
Brand: Panduit
|
SKU:
166085
Regular price
$32.63
Unit price
Description
Description

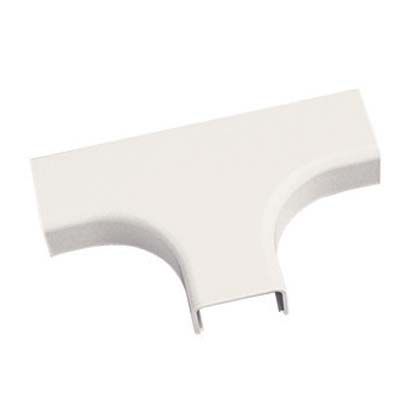

Panduit TFC3EI-X | Surface Raceway, LD3 Tee Fitting, Low Votage, Electric Ivory
Simplify your cabling and streamline your tee configuration with our power rated fitting. Ideal for routing power and data along walls, ensuring organized and efficient installations.
Tee fitting for use with LD3, LDPH3, and LDS3 raceway, Electric Ivory, ABS, Length 3.6 in.
Panduit Pan-Way Tee Fitting, Bend Radius Low Voltage Non-Metallic, Snap-On Mounting, For Use With: LD3/LDPH3/LDS3 Series Raceway, ABS, Electric Ivory, 3.6 in L x 2.23 in W x 0.47 in H Dimensions
Panduit - TFC3EI-X - Features
- One-piece hinged design, adhesive backing
- One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - TFC3EI-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TFC3EI-X |
| Color | Ivory |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Low Voltage Fitting |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Tee |
| For Use With | LD3 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards |
| Overall Length (In.) | 3.6 |
| Overall Length (mm) | 91.4 |
| Overall Width (In.) | 2.23 |
| Overall Width (mm) | 56.6 |
| Overall Height (In.) | 0.47 |
| Overall Height (mm) | 11.9 |
| Application | Surface Raceway products provide flexibility for routing, protecting, and consealing Low-Voltage Data, Fiber Optic and Electrical Wiring within any Enterprise Environment |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
| UPC | 07498361473 |
Panduit - TFC3EI-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.8510 |
Panduit - TFC3EI-X - Videos
| Panduit TFC3EI-X Video 1 | Click to View |
|---|
