Brand: Panduit
|
SKU:
165450

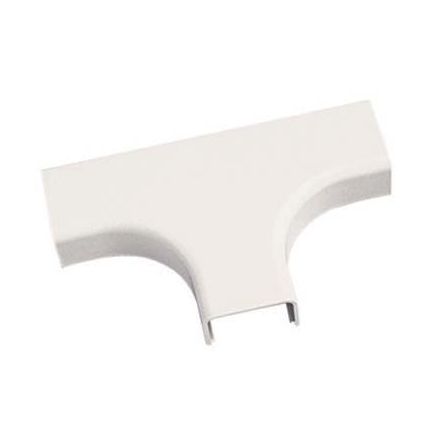

Panduit TFC5EI-X LD5, LDPH5, LDS5 Bend Radius Tee Fitting, Electric Ivory, Pack of 10
Regular price
$35.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit TFC5EI-X LD5, LDPH5, LDS5 Bend Radius Tee Fitting, Electric...
Regular price
$35.24
Unit price
Description
Description
Panduit TFC5EI-X | Surface Raceway, LDPH5 Tee fitting, Electric Ivory
The power rated tee fitting extends cable runs in a tee configuration and is used with LDPH5 raceway. It is Electric Ivory.
One inch bend radius fittings are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - TFC5EI-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - TFC5EI-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TFC5EI-X |
| Item Description | Surface Raceway, LDPH5 Tee fitting, Electric Ivory |
| Product Type | Bend Radius Control Fittings |
| Sub Brand | Pan-Way |
| Color | Electric Ivory |
| Fitting Type | Tee |
| For Use With | LD5,LDPH5,LDS5 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.64 |
| Overall Height (mm) | 16.3 |
| Overall Length (In.) | 2.58 |
| Overall Length (mm) | 65.5 |
| Overall Width (In.) | 4.04 |
| Overall Width (mm) | 102.6 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| Part Features | 1 bend radius control fittings, One-piece hinged design, Adhesive backing, Available in different sizes & lengths, Non-metallic construction, Distinct colors and Full selection of fittings and surface mount boxes. |
Panduit - TFC5EI-X - Package Information
| UPC | 07498355643 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0839 |
| Standard. Ctn. Quantity | 50 |
| Standard. Ctn. Volume (cf) | 0.4196 |
Panduit - TFC5EI-X - Videos
| Video 1 | Click to View |
|---|
