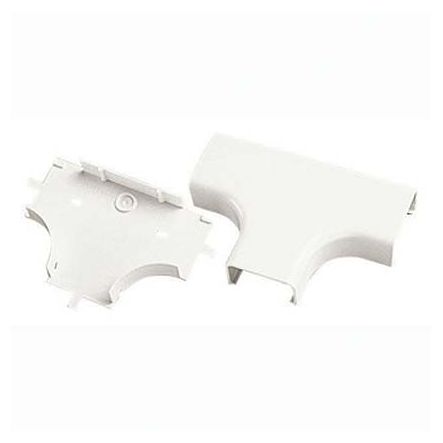

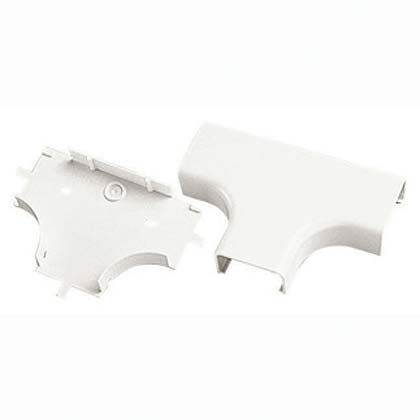

Panduit TFX3WH-X | Surface Raceway, LD3 Power Rated Tee, White
Regular price
$7.44
Unit price
Brand: Panduit
|
SKU:
PAN-TFX3WH-X
Regular price
$7.44
Unit price
Description
Description
Panduit TFX3WH-X | Surface Raceway, LD3 Power Rated Tee, White
The power rated tee fitting extends cable runs in a tee configuration and is used with LDPH3 raceway. It is White.
Panduit TFX3WH-X - FITTING - RACEWAY NONMETALLIC SINGLE
Specifications
Specifications
Panduit - TFX3WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - TFX3WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TFX3WH-X |
| Item Description | Surface Raceway, LD3 Power Rated Tee, White |
| Product Type | Power Rated Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Tee |
| For Use With | LDPH3, LDS3 |
| Material | Rigid PVC |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant. |
| Overall Height (In.) | 0.47 |
| Overall Height (mm) | 11.9 |
| Overall Length (In.) | 2.23 |
| Overall Length (mm) | 56.6 |
| Overall Width (In.) | 3.6 |
| Overall Width (mm) | 91.4 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
Panduit - TFX3WH-X - Package Information
| UPC | 07498353000 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0515 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - TFX3WH-X - Videos
| Video 1 | Click to View |
|---|
