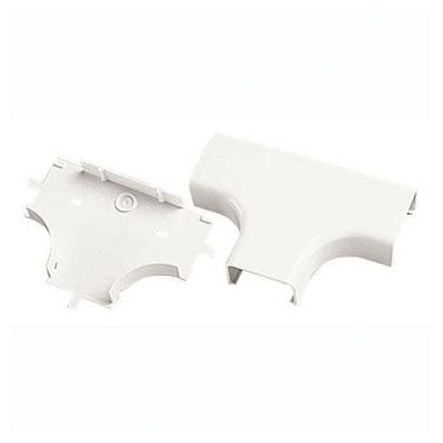

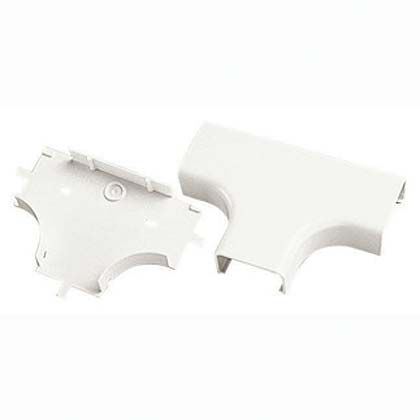

Panduit TFX3WH-X | Surface Raceway, LDPH3 Tee fitting, White
Regular price
$52.21
Unit price
Brand: Panduit
|
SKU:
261368
Regular price
$52.21
Unit price
Description
Description
Panduit TFX3WH-X | Surface Raceway, LDPH3 Tee fitting, White
Our power-rated tee fitting allows for easy cable extensions in compatible raceways. It provides an organized, efficient, and reliable solution for cable management.
Tee fitting for use with LDPH3 and LDS3 raceway, White, ABS, Length 2.23 in.
Panduit Pan-Way Tee Fitting, Power Rated, Snap-On Mount, For Use With: Pan-Way LDPH3 and LDS3 Series Raceway, PVC, White, 2.23 in L x 3.6 in W x 0.47 in H
Panduit - TFX3WH-X - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance of high performance cabling systems
- one piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool-free installation and works well for temporary mounting
- Full selection of fittings and surface mount boxes wide variety of fittings and surface mount boxes available for various LD raceway applications
Specifications
Specifications
Panduit - TFX3WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | TFX3WH-X |
| Color | White |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Tee |
| For Use With | LDPH3, LDS3 |
| Material | PVC |
| Material Properties | Rigid |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Length (In.) | 2.23 |
| Overall Length (mm) | 56.6 |
| Overall Width (In.) | 3.6 |
| Overall Width (mm) | 91.4 |
| Overall Height (In.) | 0.47 |
| Overall Height (mm) | 11.9 |
| Application | Pan-Way LD2P10 Profile Raceway is a One-Piece Multi-Channel Channel Raceway Which Provides Solutions for Routing Both Power and Data Cabling Along Perimeter Walls. Ld2P10 Profile Raceway is Available With Multi-Channel Fittings. |
| UPC | 07498353000 |
Panduit - TFX3WH-X - Videos
| Panduit TFX3WH-X Video 1 | Click to View |
|---|
