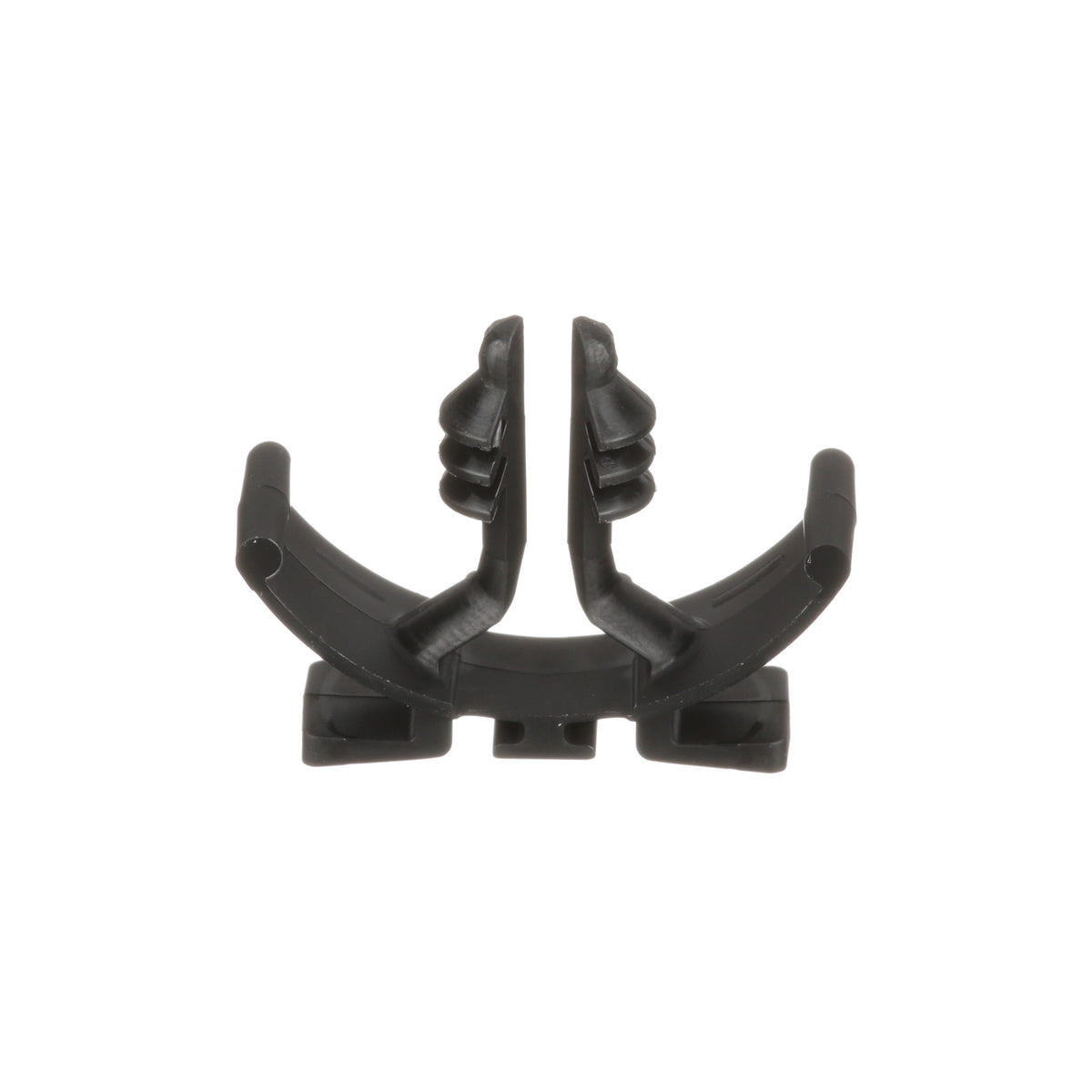

Panduit THM1SC-M30 | Fir Tree Harness Cable Tie Mount
Description
Description
Panduit Harness Cable Tie Mount, Fir Tree Hole Mount, 0.98 in Base Length, 0.38 in Base Width, Nylon 6.6, Black
Easily secure wire bundles with the unique design fir tree, with our push cable tie mount, simplifying your installation with the pre-drilled holes to securely lock into place.
Panduit THM1SC-M30 Harness Mount with a fir tree push barb, holds wire bundles tightly and installs quickly into pre-drilled holes. The mount requires a panel hole diameter of .250" (6.5 mm) and panel thickness between .03" to .14" (.9 mm to 3.4 mm)for application. For use in indoor and high-temperature environments. Made of Heat Stabilized Nylon 6.6, are black in color and come in packages of 1000.
Panduit - THM1SC-M30 - Features
- Applications: Harness Cable Tie Mount is Applied With a Fir Tree Push Barb, for Indoor Environments
- Made of heat stabilized nylon 6.6
Specifications
Specifications
Panduit - THM1SC-M30 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 55120000 |
| Technical Information | UL Recognized E136577, RoHS Compliant |
| Material Description | Nylon 6.6 (Heat-Resistant) |
| Product Type | Cable Tie Mount |
| Application | Harness Cable Tie Mount is Applied With a Fir Tree Push Barb, for Indoor Environments |
| Color | Black |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Material Properties | Heat-Stabilized |
| Maximum Compatible Panel Thickness (In.) | 0.25 |
| Maximum Compatible Panel Thickness (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 115 |
| Maximum Operating Temperature (°F) | 239 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Fir Tree Mount |
| Overall Length (In.) | 0.98 |
| Overall Length (mm) | 24.9 |
| Overall Width (In.) | 0.38 |
| Overall Width (mm) | 9.7 |
| Overall Height (In.) | 0.74 |
| Overall Height (mm) | 18.8 |
| Resistance Properties | Heat-Resistant |
| UPC | 07498341471 |
Panduit - THM1SC-M30 - Package Information
| UPC | 07498341471 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.2652 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.3262 |
Panduit - THM1SC-M30 - Videos
| Panduit THM1SC-M30 Videos | Click to View |
|---|
